Series YE.56

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series YE.56 - Plastic-steel hybrid e-chain®

YE system - the best mix of lightweight plastic and tough steel for an e-chain® that can handle high unsupported travels with ease.

Typical industry sectors and applications
Cherry pickers, construction machinery and lifting platforms have an identical challenge to face: a safe and compact vertical guidance of the cables and hoses. For those applications that require special high unsupported lengths at different angles of elevation, igus® has developed the plastic-steel hybrid e-chain® YE

Further industry sectors and applications

Breakdown lorry
Telescopic forklift
Vertical lifts
Articulated telescopic platforms
Horizontal drilling rigs
Articulated arm systems
Drilling and diaphragm wall rigs
Work platforms

Advantages of the YE system:

Almost 50% lighter than a pure steel chain of comparable size
50% longer unsupported length than a comparable plastic e-chain®
High tensile strength
Very easy installation - plastic outer plates with flange for easy e-chain® link assembly
No screws, rivets or bolts which can become loose under vibration
Tough: steel mounting brackets with attachment options from any side
High ease of movement due to plastic pin connections, high tensile force absorption
Wide range of cable- and hose-friendly interior separation
Available as ready-to-install readychain® system with cables, hoses and hydraulic components

When to use another e-chain® series:

When greater dynamics are required
Series E4.56
When pure plastic e-chains® are required
Series E4.56
When a fully enclosed e-tube is required
Serie R4.56
For long travels gliding
Series P4.56

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is: HF = H + 90 mm (with 3 kg/m fill weight), this should be observed for all types of application. Please consult us if space is particularly limited.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 91 mm per link
Chain links per m: 11
Travel: S
Chain length = LK = S/2 + K

Unsupported length

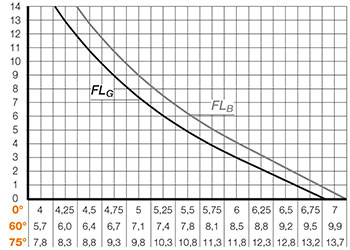

Unsupported length versus fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale:
Unsupported lengths [m] at 0° / 60° / 75° inclination
FLG = unsupported with straight upper run
FLB = unsupported with permitted sag
Graph values provisional!

Price index:

Opening mechanism :

Personal contact

3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Other installation types

Technical specifications

Strain reliefs

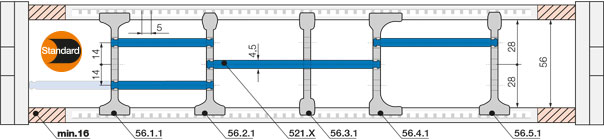

Interior separation

Option 1: standard

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

Standard
Separators are assembled every 2nd e-chain® link in crossbars with outer plates made of plastic!

Standard - for all purposes
(56.1 = unassembled; 56.1.1 = assembled)
Separator, wide base for maximum holding force and stability in e-chains® and energy tubes

Separator, narrow top for fast cable installation
(56.2 = unassembled; 56.2.1 = assembled)
Wide base on one side for high holding force, narrow on opposite side for easy cable installation.

Separator with narrow base for many thin cables
(56.3 = unassembled; 56.3.1 = assembled)
Separator with narrow base for many thin cables side by side. Space-saving in energy chains.

For e.g. Side-mounted applications
(56.4 = unassembled; 56.4.1 = assembled)
Asymmetrical separator, results in defined clearance and spacers can be dispensed with. For e-chains® and e-tubes.

Notch separator for integrated grid structure
(56.5 = unassembled; 56.5.1 = assembled)
Notch separator locks into crossbar to be positioned exactly. Recommended for side-mounted applications.

Horizontal interior separation
(520.X = unassembled; 521.X = assembled)
Locks securely into the separator at both ends, allowing a fixed width. Can be used as full-width or partial shelf.

Mounting brackets

Steel - moving end locking, fixed end locking

Steel - moving end pivoting, fixed end locking

unassembled	assembled

Note mounting brackets: The YE plastic-steel hybrid e-chains® always end with outer links (odd number of chain links). The mounting brackets on the moving end and fixed end are the same parts and always fit on the inner side.


:
Part No. :

Part No. :

Strain reliefs

unassembled	assembled

Note mounting bracket:The YE plastic-steel hybrid e-chains® always end with outer links (odd number of chain links). The mounting brackets on the moving end and fixed end are the same parts and always fit on the inner side.


:
Part No. :

Part No. :

Strain reliefs

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	100
standing (max.) [m]	5
max. side-mounted, unsupported [m]	0
max. vertical, long travels [m]	0
circular	with reworking

Material of chain links	igumid G
Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	120
Gliding speed (max.) [m/s]	0
Max. gliding speed [m/s²]	0
Speed FLG max. [m/s]	1
Speed FLG max. [m/s²]	1
Speed FLB max. [m/s]	1
Speed FLB max. [m/s²]	1
Flammability class of chain link	VDE 0304 IIC UL94 HB
