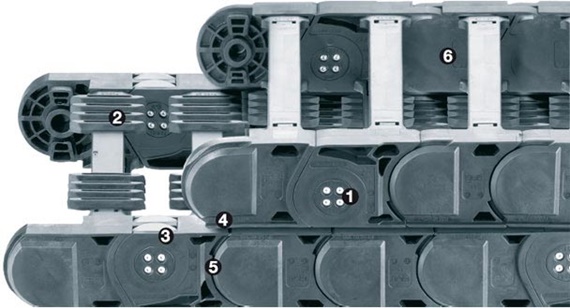

Low maintenance roller e-chain system® with tribo-optimized plastic rollers
2Comb-like autoglide crossbars
3Special design of the rollers and chain links therefore particularly quiet
4Top and bottom run roll offset on top of each other
5Same pitch on roller/chain links
64 Inner height: 32 mm, 42 mm, 56 mm and 80 mm available

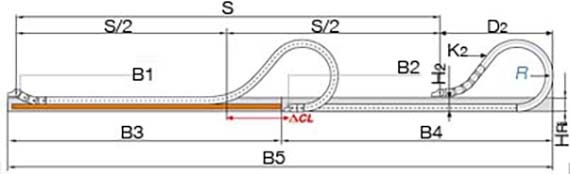

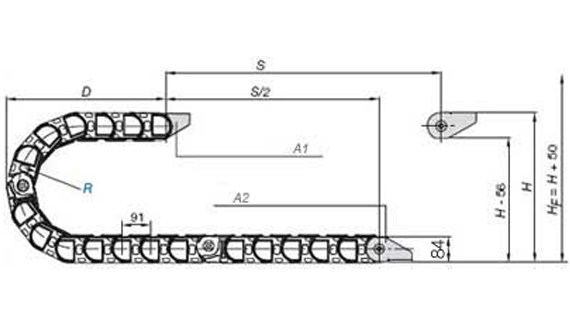

| A1 = Moving end | A2 = Fixed end | B1 = Moving end |
| B2 = Fixed end | B3 = Guide trough with glide rail | B4 = Guide trough without glide rail |
| B5 = Total length of guide trough | S = Travel | R = Bending radius |
| H = Nominal installation height | HF = necessary clearance height | HRI = Trough inner height |
| D = projection, radius end position | K = π • R + "safety" | D2 = Überstand bei langen
Verfahrwegen, gleitend |

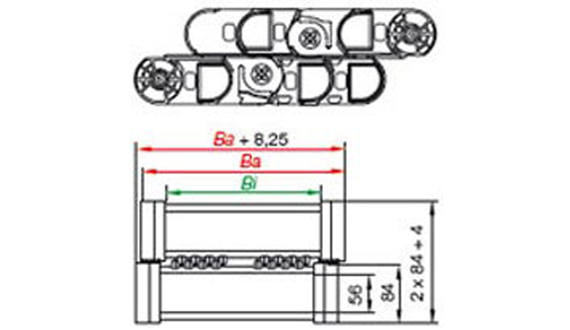

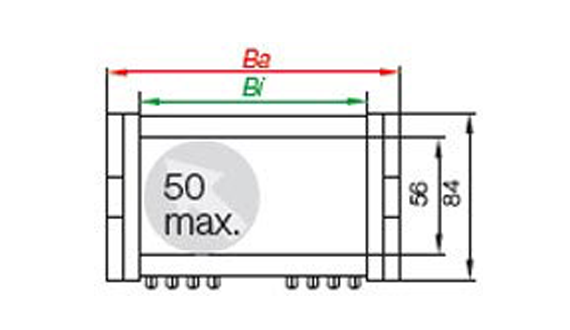

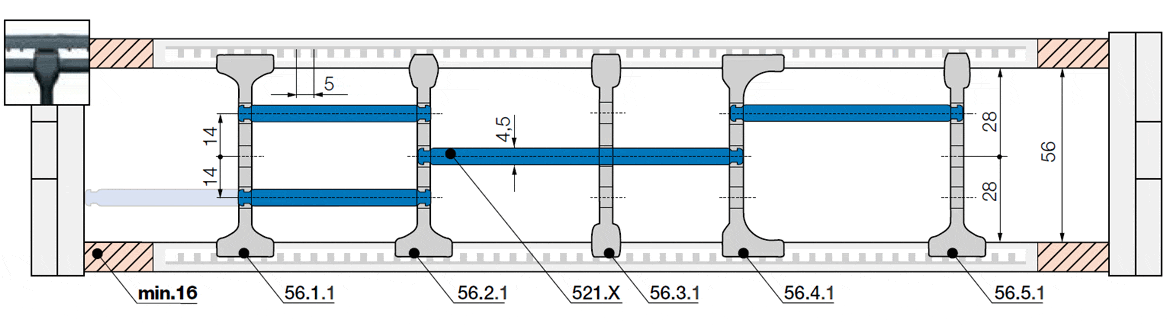

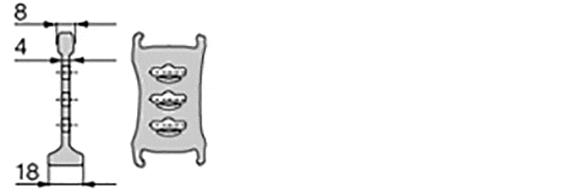

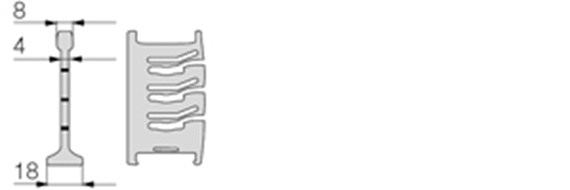

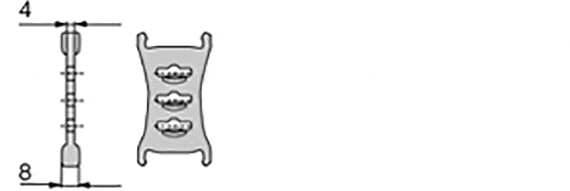

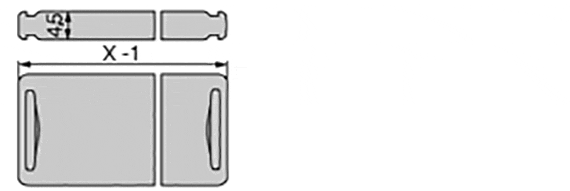

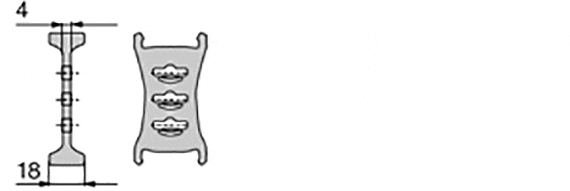

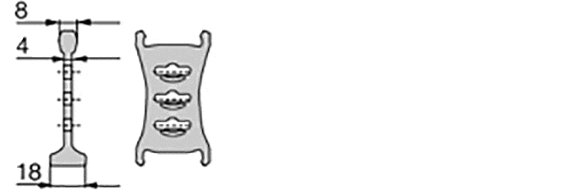

| K2 = *surcharge | H2 = *Installation height |
| Long travels | from 10 m to max. 600 m |
| Max. rolling speed/max. rolling acceleration | max. 10 [m/s] / max. 50 [m/s²] |
| Fill weight | max. 7,00 [kg/m] |
| Material - permitted temperature °C | igumid G / -40° up to +120° C |
| Flammability class, igumid G | VDE 0304 IIC UL94 HB |
| Part No. | Inner width | Outer width | Inner height | Outer height | Bending radii | Weight | H | D | K | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bi [mm] | Ba [mm] | hi [mm] | ha [mm] | R [mm] | [kg/m] |
| Order number |
|---|
| Order number |
|---|
| Order number |
|---|
| Order number |
|---|
| Order number |
|---|
| Order number | Width |
|---|

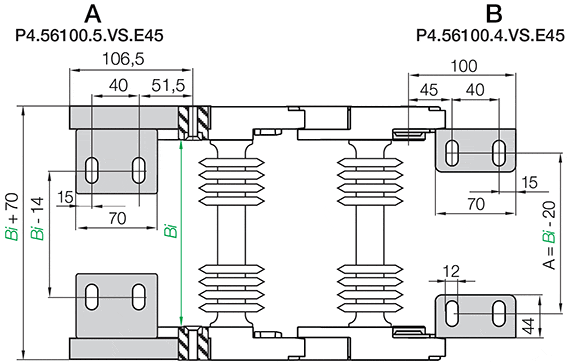

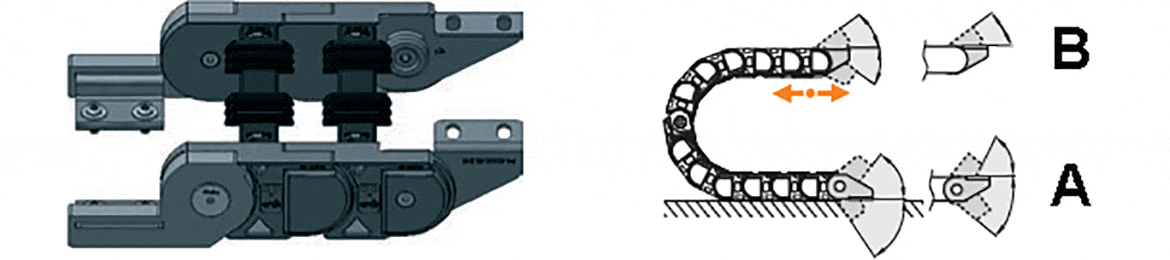

For pivoting connections
Secure attachment to your application
Same kit (2-piece) for all e-chain® widths
Electrically conducting
| Ordering number |
|---|
