drylin® T rail guides

The dimensions of the drylin® T rail guides are the same as the usual recirculating ball bearing guides. They are available in seven installation sizes - users have the choice between three different carriage options: with manually or automatically adjustable clearance or an extremely robust heavy-duty version. The sliding elements are secure within the carriage body, especially suited when pulling down from the rail. The drylin® T carriage guides can handle loads up to 14,000 N, have a service life of up to 50,000 km and are extremely dirt-resistant.

The drylin® T rail guide are identical with regard to connector and hole dimensions:

  • INA: KUVE -B • KWVE-B • KWE-B • KWSE / KUSE
  • Bosch Rexroth: FNS • FLS • SNS • SLSS • NH • SLH • FNN • SNN
  • THK: SHS-C/LC • HSR-A/LA • HSR-B/LB/BM
  • Hiwin: HGW-CC • QHW-CC • RGW-CC • RGW-HC
  • Rollon: MRS • MRS-L IKO: MRS • MRS-L
  • Rodriguez: BRH-A • BRH-AL • MSR-E • MSR-LE
  • Romani: HRC-FN

Change your bearing now

Change your bearing now

Up to 40% more cost-effective than recirculating ball bearing guides!
Expert system linear guides

Expert system linear guides

System selection & service life calculation of linear guides.
List
Tile

Number of products: 23

drylin® T guide rail TS
drylin® T guide rail TS
Material: Aluminium, hard anodised


78.86 USD/m
8 items, thereof ready for shipping:
5 in 24 hours
3 in 10 working days
To the product page

drylin® T guide carriage TW-01
drylin® T guide carriage TW-01
  • drylin® T linear carriage of the standard 01 series
  • With individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y or z direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
45.33 USD/Pc.
12 items, thereof ready for shipping:
4 in 24 hours
2 in 3 working days
To the product page

drylin® T low-profile guide rail TS-04
drylin® T low-profile guide rail TS-04
Material: aluminium, hard-anodised

82.28 USD/m
8 items, thereof ready for shipping:
5 in 24 hours
1 in 3 working days
To the product page

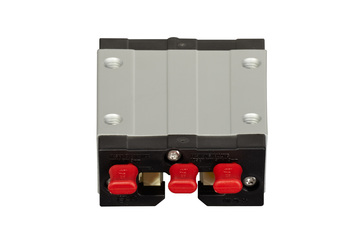

drylin® T guide carriage TWA-01
drylin® T guide carriage TWA-01
  • drylin® T automatic linear carriage of the standard series 01
  • With automatic bearing clearance adjustment
  • Adjustment and cancellation of the pretension through the supplied pretension key
  • In operation, the bearing clearance automatically adjusts itself
  • Long service life due to iglidur® J
  • Material: aluminium housing, plastic lid, iglidur® J slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
45.33 USD/Pc.
12 items, thereof ready for shipping:
3 in 24 hours
1 in 3 working days
To the product page

drylin® T guide carriage TW-01-HKA
drylin® T guide carriage TW-01-HKA
  • drylin® T linear carriage of the standard series 01
  • With fitted manual clamp
  • Individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
51.76 USD/Pc.
8 items, thereof ready for shipping:
3 in 3 working days
To the product page

drylin® T miniature guide carriage TW-04
drylin® T miniature guide carriage TW-04
  • drylin® T low profile linear carriage of the series 04
  • Robust type
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Optionally configurable as floating bearing version in the y and z direction
  • Material: Housing zinc die-casting
  • iglidur® J sliding element, mount: TW-04-07, TW-04-07-LLZ: iglidur® J200
The suitable rail for the TW-04 carriage in installation sizes 7, 9, 12 or 15 can be found here.
19.55 USD/Pc.
14 items, thereof ready for shipping:
4 in 24 hours
1 in 3 working days
To the product page

drylin® T miniature guide carriage TWE-04
drylin® T miniature guide carriage TWE-04
  • drylin® T adjustable low profile linear carriage of the series 04
  • Robust type
  • With manual clearance adjustment on the carriage
  • High corrosion resistance through cathodic dip coating
  • Material: Housing die cast zinc, iglidur® J slider
The suitable rail for the TWE-04 carriage in installation size 12 or 15 can be found here.
36.52 USD/Pc.
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

drylin® T guide carriage TW-12
drylin® T guide carriage TW-12
  • New generation of high performance
  • Robust design
  • Captive bearing elements made from iglidur® J200
  • 50% longer service life in comparison to iglidur® J
  • Manual clearance adjustment
  • Easy installation
  • Material: aluminium housing, stainless steel lid, iglidur® J200 slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
65.59 USD/Pc.
12 items, thereof ready for shipping:
4 in 24 hours
8 in 3 working days
To the product page

drylin® T guide rail TS-CA-Ungebohrt
drylin® T guide rail TS-CA-Ungebohrt
Material: Aluminium, clear anodised

Upon request
4 items, thereof ready for shipping:
4 in 24 hours
To the product page

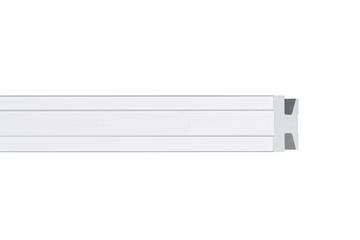

drylin® T guide rail TS-CA Econ
drylin® T guide rail TS-CA Econ
  • drylin® T guide rails with clear anodised finish
  • Corrosion-resistant surface
  • Consistent silver colour ideal for visible parts
  • Clear anodised, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
61.61 USD/m
4 items, thereof ready for shipping:
4 in 24 hours
To the product page

drylin® T guide rail TS-11
drylin® T guide rail TS-11
Material: Hollow profile, aluminium, clear anodised
88.40 USD/m
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

drylin® T guide carriage TW-02
drylin® T guide carriage TW-02
  • drylin® T linear carriage of the series 02 Heavy Duty
  • Robust design for extreme applications
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Material: aluminium housing, stainless steel cover, iglidur® J2 slider
Here you can find the suitable rail (size 15, 20, 25, 30 - drilled and undrilled)
59.03 USD/Pc.
9 items, thereof ready for shipping:
3 in 24 hours
6 in 10 working days
To the product page

drylin® T guide carriage TW-03
drylin® T guide carriage TW-03
  • Please note: only runs on TS-01-20 rail
  • drylin® T linear carriage from the 03 compact series
  • Tall slim design
  • For robust requirements
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Material: aluminium housing, stainless steel cover, iglidur® J2 slider
  • Available as fixed and floating bearing (y- and z-direction)
Here you will find the right rail
76.29 USD/Pc.
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

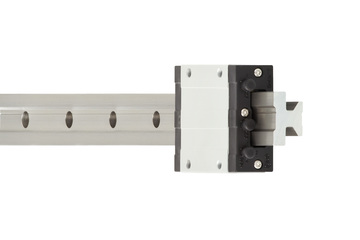

drylin® T rail guide, complete system TK-01
drylin® T rail guide, complete system TK-01
Upon request
To the product page

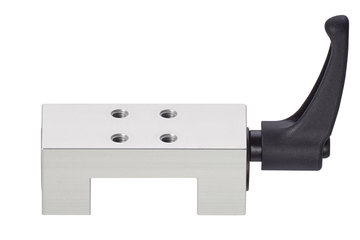

drylin® T manual clamping TWBM-11
drylin® T manual clamping TWBM-11
Compact design with plastic clamping elements
285.48 USD/Pc.
4 items, thereof ready for shipping:
4 in 24 hours
To the product page
