Knife edge rollers online shop

Knife edge rollers or rolling knife edges made of iglidur high-performance plastics are designed for particularly tight deflection radii. They are maintenance-free, do not require lubrication, and thus prevent product contamination. They are particularly easy to clean and suitable for direct food contact (FDA-compliant and in accordance with EU 10/2011). The following shaft diameters are available in our shop: 3, 4, 5, 6, 8, and 10 mm. The corresponding outer diameters are 9, 11, 12, 14, 18, and 20 mm. The lengths are 50 and 70 mm. Please contact us if you need help with your selection or require special parts for your specific application.

Categories
Rollers
Guide rollers
Knife edge rollers
Filter
Core Requirements
Requirements
List
Tile

Number of products: 5

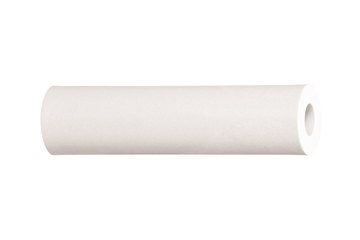

iglidur® A180, knife edge roller
iglidur® A180, knife edge roller
  • Completely lubrication-free belt guiding
  • The FDA-compliant all-rounder
  • Low drive power
  • Tight deflection radii
  • Long service life of the belt
  • The iglidur® A180 material complies with food and drug administration (FDA) regulations for repeated contact with food
  • Good media-resistance
  • Long service life
  • For wet environments
5,15 USD/Pc.
10 items, thereof ready for shipping:
10 in 24 hours
To the product page
RoHS compliant According to 2011/65/EU (RoHS 2)

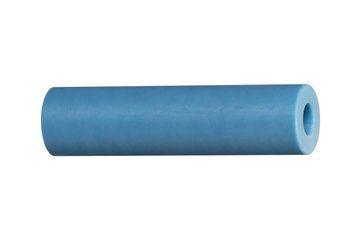

iglidur® A350, knife edge roller
iglidur® A350, knife edge roller
  • Belt deflection 100% lubrication-free
  • Fulfils the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors
  • Low drive power
  • The endurance runner at higher temperatures in the food sector
  • Tight deflection radii
  • Compliant with EC regulation 10/2011 EC
  • Long service life of the belt
  • FDA compliant
  • Long service life
  • For use with temperatures up to +180 °C
5,75 USD/Pc.
4 items, thereof ready for shipping:
4 in 24 hours
To the product page
RoHS compliant According to 2011/65/EU (RoHS 2)

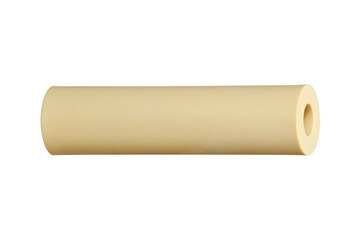

iglidur® P210, knife edge roller
iglidur® P210, knife edge roller
  • Low drive power
  • Tight deflection radii
  • Long service life of the belt
  • Long service life
  • Belt deflection 100% lubrication-free
  • Standard range from stock
6,18 USD/Pc.
12 items, thereof ready for shipping:
11 in 24 hours
1 in 4 weeks
To the product page
RoHS compliant According to 2011/65/EU (RoHS 2)

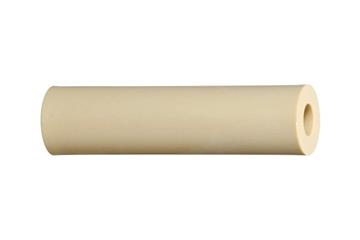

iglidur® H1, knife edge roller
iglidur® H1, knife edge roller
  • Low drive power
  • Endurance runner with high media resistance
  • Tight deflection radii
  • High wear resistance in extreme ambient conditions
  • Long service life of the belt
  • Very low coefficient of friction
  • High resistance to temperature and chemicals
5,97 USD/Pc.
9 items, thereof ready for shipping:
8 in 24 hours
1 in 4 weeks
To the product page
RoHS compliant According to 2011/65/EU (RoHS 2)

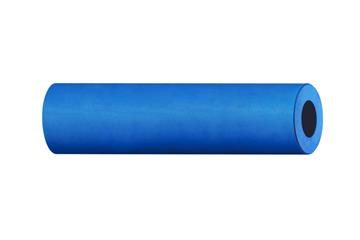

iglidur® A250, knife edge roller
iglidur® A250, knife edge roller
  • Wear-resistant
  • FDA and EU10/2011-compliant
  • Low required drive power
  • Lubrication-free belt deflection
7,21 USD/Pc.
8 items, thereof ready for shipping:
7 in 24 hours
1 in 4 weeks
To the product page
RoHS compliant According to 2011/65/EU (RoHS 2)
