Buy energy chains for linear motion

Our best sellers

Our best sellers

Discover our bestseller energy chains for 90 % of all applications and industries.
Tips for unsupported energy chains

Tips for unsupported energy chains

Are you interested in an energy chain to guide cables and hoses in machines and systems safely and economically? Here are 10 tips to help you get the most out of your investment.
Categories
Energy chains
Energy chains for linear motion
triflex Energy chains for 3D movement
Rotary movements
Special solutions
Accessories
Complete set
Replacement parts
smart IoT solutions
Filter
Core Requirements
Show details
System
Dimension
Opening principle/Design principle
Unsupported length and fill weight
Speed and acceleration
Parameters
Delete all filters
List
Tile

Number of products: 7

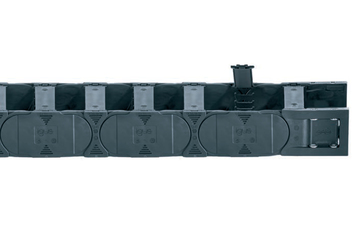

Series E4.31L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
Series E4.31L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
  • Inner height hi: 31mm
  • Inner width Bi: 40 - 175mm
  • Bend radii R: 55 - 250mm
  • Pitch: 46mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
126 items, thereof ready for shipping:
5 in 24 hours
121 in 48 hours
To the product page

Series E4.38L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
Series E4.38L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
  • Inner height hi: 38mm
  • Inner width Bi: 50 - 300mm
  • Bend radii R: 63 - 350mm
  • Pitch: 56mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
180 items, thereof ready for shipping:
176 in 48 hours
To the product page

Series E4.48L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
Series E4.48L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
  • Inner height hi: 48mm
  • Inner width Bi: 50 - 300mm
  • Bend radii R: 75 - 350mm
  • Pitch: 67mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
162 items, thereof ready for shipping:
3 in 24 hours
159 in 48 hours
To the product page

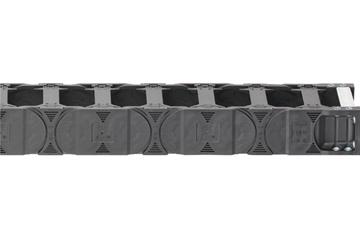

Series E4.64L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
Series E4.64L, energy chain with crossbars every link, crossbars openable in the inner and outer radius from both sides
  • Inner height hi: 64mm
  • Inner width Bi: 87 - 200mm
  • Bend radii R: 100 - 400mm
  • Pitch: 91mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
232 items, thereof ready for shipping:
224 in 48 hours
To the product page

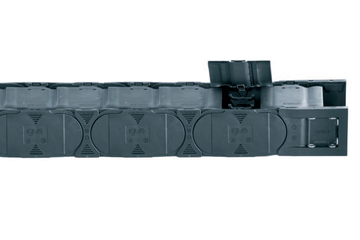

Series R4.31L, energy tube, lid can be swivelled, openable from both sides
Series R4.31L, energy tube, lid can be swivelled, openable from both sides
  • Inner height hi: 31mm
  • Inner width Bi: 50 - 100mm
  • Bend radii R: 75 - 250mm
  • Pitch: 46mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
77 items, thereof ready for shipping:
49 in 72 hours
To the product page

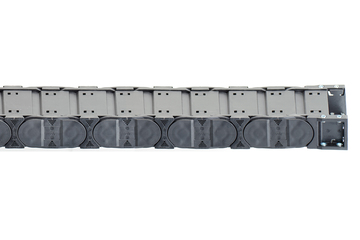

Series R4.38L, energy tube, lid can be swivelled, openable from both sides
Series R4.38L, energy tube, lid can be swivelled, openable from both sides
  • Inner height hi: 38mm
  • Inner width Bi: 50 - 250mm
  • Bend radii R: 125 - 300mm
  • Pitch: 56mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
63 items, thereof ready for shipping:
56 in 72 hours
To the product page

Series R4.48L, energy tube, lid can be swivelled, openable from both sides
Series R4.48L, energy tube, lid can be swivelled, openable from both sides
  • Inner height hi: 48mm
  • Inner width Bi: 50 - 250mm
  • Bend radii R: 125 - 350mm
  • Pitch: 67mm
  • Design: Openable from both sides along the inner and outer radius
Upon request
71 items, thereof ready for shipping:
1 in 24 hours
54 in 72 hours
To the product page
