C6 energy chain system for cleanroom applications

Cleanroom energy chain C6

Highest cleanroom suitability, hardly any abrasion & high strength

Abrasion-resistance is the decisive parameter for energy chain applications in cleanrooms. The C6 range of energy chains is setting new standards here. The abrasion is barely measurable. This is the best outcome: no abrasion can be measured when the new C6 cleanroom energy chain is used, even under high loads. Further advantages are extremely quiet operation and easy installation.The series offering the highest cleanroom requirements is now available in three inner heights: 29, 38 and 53mm. Optimised with the crossbars every link design in the outer radius and as standard with crossbars plus interior separation made of iglidur® J, the best glide surface for any cable jacket or hose material. The side links made of tribo-optimised low-wear ESD material for dissipative side bands are also standard.Typical application areas: Electrical manufacturing, semiconductor industry, FPD production, microelectronics, panel robots, packaging, plotters, medical technology
Submit an enquiry for the C6 now
Tech up

Tech up

  • Optimised design without any measurable abrasion
  • For ISO Cleanroom Class 1 applications
  • High strength due to tough double stop-dog system
  • Very quiet operation due to injection-moulded dampening element
  • Side parts made of ESD material to prevent static charge
Cost down

Cost down

  • Long service life due to low life cycle costs
  • Easy and therefore cost-saving installation
  • Made of igumid ESD (side parts) and iglidur J (crossbars and interior separation) as standard
  • No static charge thanks to tribo-optimised ESD side links
Proof

Proof

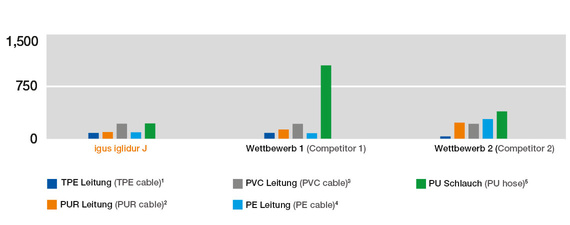

  • Abrasion/cable tests in the igus® laboratory. The iglidur® J material produces 77% less abrasion*
*Measured and averaged on five different friction partners:
1) CF340.250.01 2) CF270.UL.350.01.D 3) CF886.350.01
4) CAPE.A.10.0 5) CAPU.A10.0 compared to the standard material igumid G
Sustainability

Sustainability

  • No contamination of production items in the cleanroom by particles
  • Uses less resource due to long service life
  • Have your energy chain recycled at the end of its life cycle with the igus chainge recycling program. No matter what manufacturer.
    You will receive a voucher.

Product range:

Part No.Inner heightOuter heightInner widthOuter widthBend radiusPitch
C6.29.100.075.1729mm35mm100mm116mm075mm22mm
C6.53.172J.075.353mm67mm172mm199mm075mm30mm

Tests in the igus laboratory

Cleanroom test laboratory Continuous cleanroom tests were performed in the IPA-certified igus cleanroom laboratory during the development process to find a solution that will meet the increasing cleanroom requirements.
Abrasion test Various sliding surfaces are tested and evaluated for abrasion.


Comparisons with other products for cleanroom applications


⬤⬤⬤⬤⬤ Most suitable | ⬤ Rather less so | ✔ Yes | X No
 C6
energy chain		 Energy chain
E6/E6.1		e-skin
corrugated tube		Flat cable guide
e-skin flat
 Series E6.clean E6 seriese-skin corrugated tubee-skin flat
Class 1 according to EN ISO 14644-1Continuous cleanroom tests in the
IPA-certified igus
cleanroom laboratory		 ✔✔✔
Modularity/building block principle ⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘⬤⬤⬤⬤⬤
Components individually interchangeable✔ ✔✔✔
Quick filling, openable⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘
Fast delivery⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘
Easy maintenance⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘
Available from stock✔ ✔✔✔
Can be shortened✔ ✔✔✔
Can be widened✔ ✔✔✔
High productivity rate⬤⬤⬤⬤⭘ ⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
No minimum order quantity✔ ✔✔✔
Cost-effective⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘
Suitable for unsupported applications⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⭘⭘⭘
For high dynamics⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘
Space-saving⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘⬤⬤⬤⭘⭘
Fill weight⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
4-year guarantee✔ ✔✔✔
Saves resources✔ ✔✔✔
Everything from one source (chain, cable, connector)✔ ✔✔✔
Products also available individually✔ ✔✔✔
Quiet, smooth operation⬤⬤⬤⬤⭘ ⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
Online calculation of service lifeX ✔XX
Online interior separation configuratorX ✔✔X
Suitable for the following industriesElectronics manufacturing
FPD production
Semiconductor Industry
Microelectronics
Panel robots
Packaging
 		Electrical manufacturing
Semiconductor industry
FPD production
Microelectronics
Panel robots
Packaging
Plotter
Medical technology		Electrical manufacturing
3C industries
Dispenser
Glass cutting
Semiconductor industry
FPD production
Microelectronics
AOI
 		Electrical manufacturing
3C industries
Bonding
Dispenser
Semiconductor industry
FPD production
Medical technology
Microelectronics
AOI
   To the productTo the productTo the product

More information


Energy chains for cleanrooms

More cleanroom energy chains

Further abrasion-resistant energy chains for cleanroom applications according to Class 1 in acc. with EN ISO 14644-1.
To cleanroom energy chains
Cleanroom

Cleanroom

Discover further valuable information on cleanrooms and find out about further cleanroom products.
To cleanrooms

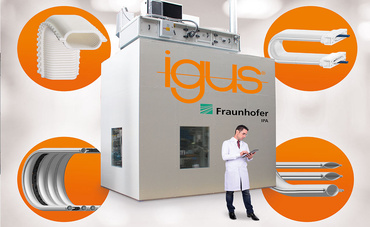

Cleanroom test laboratory
