Fibre-rods | Flexible, spring-loaded above the industrial robot

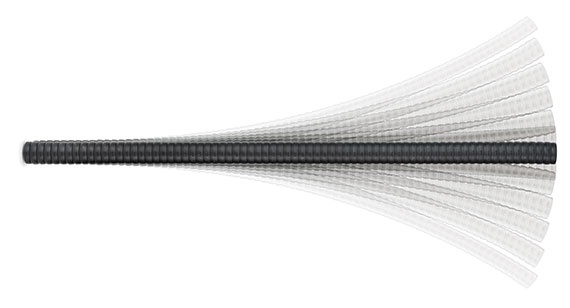

triflex® R fibre rod module

Two fibre-rods within the e-chain® enable the springy movement

Fibre-rod module (only for TRC/TRE.B) - custom solutions with directed pretension

Compare with a fishing rod above the robot
Produces consistent & directional pretension from 700 to 2000mm
Supplied as a pre-assembled component assembly consisting of triflex® R, inserted and fixed fibre-rods
No tangling and reduced spinning compared to loose e-chain®
Automatic return of the triflex® R to the initial position

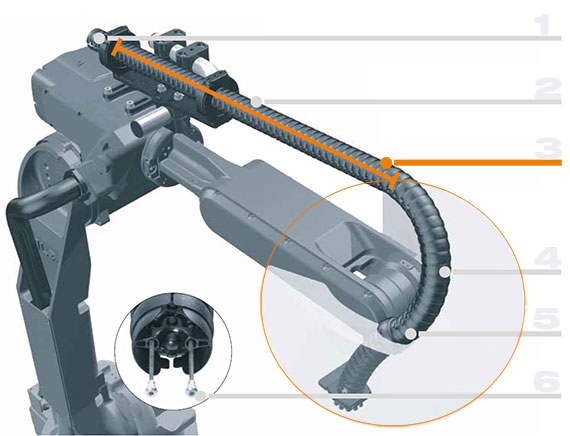

Diagram of the triflex® R fibre rod module

1: Fixed version chain links connected to each other to compensate for the relative movement of the fibre-rods within the e-chain®.

2: Area for mounting brackets of the universal mounting kit (see accessories)

3: Fibre-rod length, which is included in the part number.

4: Additional chain (TRE.B or TRC) without fibre-rod (individually adjustable as required and therefore not included with delivery).

5: Optional protectors (TR.XX.30) for additional protection of the chain.

6: Fibre-rods inside the TRE.B or TRC

Info on the right product selection

Recommended maximum lengths of the fibre-rod modules

For series	max.
	[mm]
TRE.B/TRC.40	800
TRE.B/TRC.50	1000
TRE.B/TRC.60	1000
TRE.B/TRC.70	1200
TRE.B/TRC.85	1200
TRE.B/TRC.100	1400
TRE.B/TRC.125	1800

Part no. structure
e.g. TRE.F.70.1000.1.0.B
TRE --> Series
F --> Fibre-rods
70 --> Ø Index
1000 --> Fibre-rod length
1 --> Version
0 --> Colour black
B --> B Version 4 times stronger

Order fibre-rod TRC (enclosed design)

TRC fibre-rod

length [mm]:
Size:

Order TRE.B fibre-rod (open design)

TRE.B fibre-rod

length [mm]:
Size:

Accessories for the correct assembly of the TRC and TRE.B fibre-rod module

Universal installation set

Stainless steel angle tube with installation brackets for fastening on the robot
Fastening option with mounting brackets to fix the fibre-rod to the angle tube.
Angled tube and fibre-rod can therefore be freely positioned
Quick and easy adaptation to new program sequences of the robot
Targeted masking of interfering edges and avoidance of cable loops
Guide triflex® R very close to the robot arm or laterally to axis 6 to allow max. rotary movements

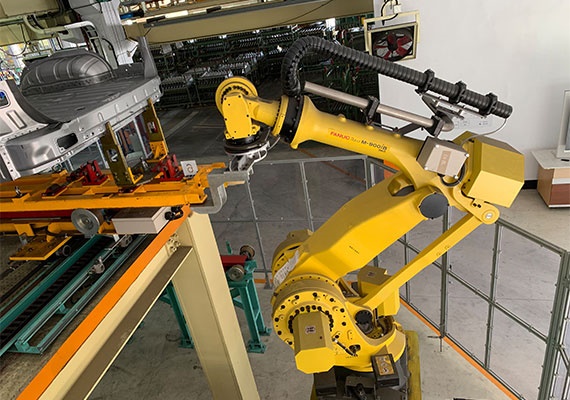

Universal_assembly_set_assembled

Universal assembly set with TRE.B fibre-rod mounted on a Fanuc M-900iB/360

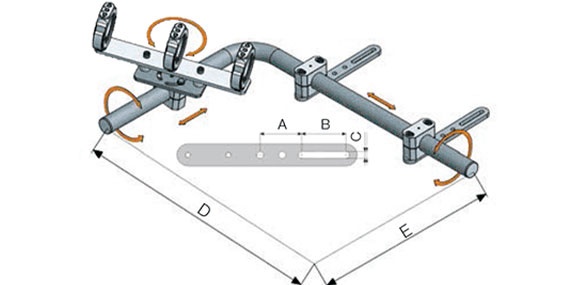

Universal assembly set_disassembled

Part No.	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]	Weight [kg]
TR.40.80	74	40	8,4	475	325	3,925	560,82 USD
TR.50.80	74	40	8,4	475	325	3,925	574,83 USD
TR.60.80	74	40	8,4	625	325	5,166	615,01 USD
TR.70.80	75	80	12,6	875	575	13,242	798,82 USD
TR.85.80	75	80	12,6	875	575	13,551	856,36 USD
TR.100.80	75	80	12,6	875	575	13,512	858,30 USD
TR.125.80	75	80	12,6	875	575	14,361	1.536,11 USD
TR.912.099	75	80	12,5	325	625	5,166	Upon request
TR.920.579	75	80	12,5	325	625	5,166	510,11 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Installing the fibre-rod system with universal assembly set

Shorten a fibre-rod yourself

Three steps to shorten a fibre-rod
The only tools needed are a saw and the e-chain® disassembly tool
