Steel support tray for supporting the energy chain's lower run

Simple one-piece steel support trays for the energy chain's lower run according to your requirements and specifications. Your width, height, and colour – we supply the right energy chain with support tray system, ready to install in your machine or application. Save time on procurement and design.

Complete system, ready to install
Avoids costly custom designs
Easy installation onto your machine, on profiles or wall brackets
Available in two types and four versions as a modular system
For many energy chain widths available from stock, with many mounting options

Two support tray types

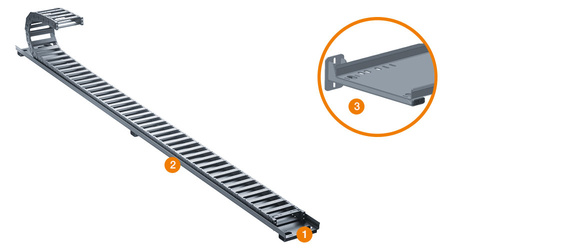

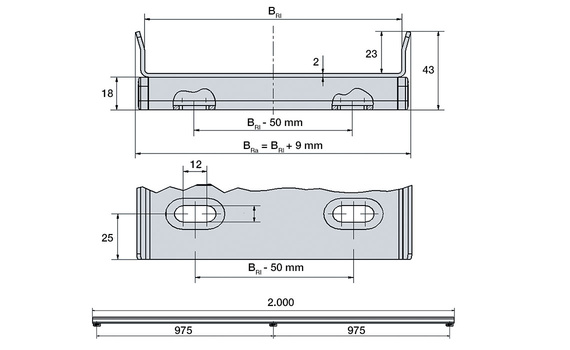

Type 1

Series S9.010. | S9.011.
1. Steel support tray, Type 01, standard lengths (1m and 2m) from stock
2. Mounting profiles every 975mm

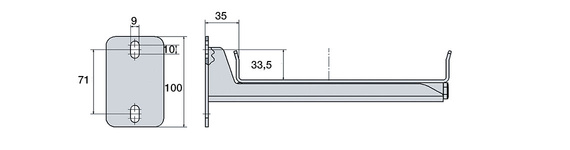

3. Wall bracket for easy fixing to your application
Outer guide trough width B_Ra: 89-185mm
Inner guide trough width B_Ri: 80-175mm
For the following series: E2.26 | E2.38 | 2400/2450/2480/2500 2600/2650/2680/2700 | E4.31L/R4.31L | E4.38L/R4.38L | E4Q.34/H4Q.34 | E4.21 | E4.28/R4.28 | E4.32/H4.32/R4.32 | EF61.29/E61.29 | E6.29/R6.29 | E61.35 | E6.35 | E61.40 | E6.40/R6.40

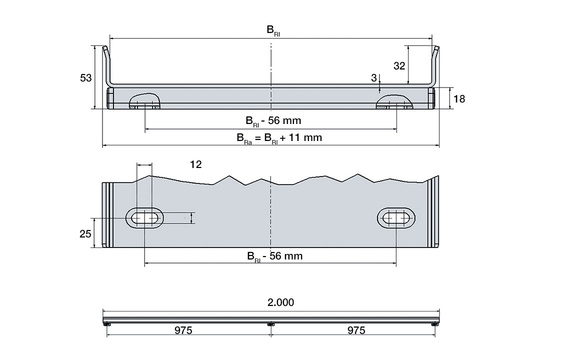

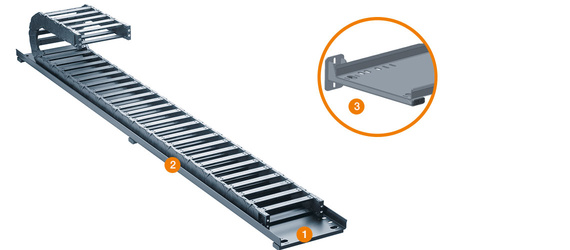

Type 2

Series S9.020. | S9.021.
1. Steel support tray type 02 Standard lengths from stock 1m and 2m
2. Mounting profiles every 975mm

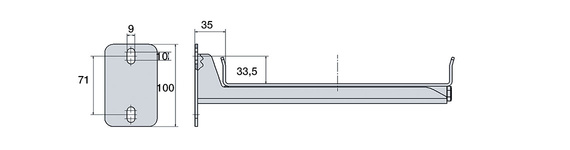

3. Wall bracket for easy mounting in your application
Guide trough width outer B_Ra: 167 - 317mm
Guide trough width inner B_Ri: 156 - 306mm
For series: E2.48 | 3400/3450/3480/3500 | E4.48L/R4.48L | E4.64L | E4Q.44/H4Q.44 | E4Q.58/H4Q.58 | E4Q.82/H4Q.82 | E4.42/H4.42/R4.42 | E4.56/H4.56/R4.56 | E4.80/H4.80/R4.80 | 14040/14140/R18840 | 14240/14340 | 14550/14650/19050 | 15050/15150/R19850 | 15250/15350 | E61.52 | E6.52/R6.52 | E61.62 | E6.62 | E61.80 | E6.80

Product range:

Part No.	Width	Bra [mm]	Bri [mm]	Ha
S9.010.05.1000.0	.05 / .050	89	80	43	127,19 USD
S9.010.05.2000.0	.05 / .050	89	80	43	175,92 USD
S9.010.07.1000.0	.07 / .070	114	105	43	131,57 USD
S9.010.07.2000.0	.07 / .070	114	105	43	182,46 USD
S9.010.10.1000.0	.10 / .100	139	130	43	136,95 USD
S9.010.10.2000.0	.10 / .100	139	130	43	203,56 USD
S9.010.15.2000.0	.15 / .150	185	175	43	Upon request
S9.010.15.1000.0	.15 / .150	185	175	43	145,63 USD
S9.020.10.1000.0	.10 / .100	167	156	53	163,56 USD
S9.020.10.2000.0	.10 / .100	167	156	53	225,92 USD
S9.020.15.1000.0	.15 / .150	217	206	53	171,75 USD
S9.020.15.2000.0	.15 / .150	217	206	53	248,85 USD
S9.020.20.1000.0	.20 / .200	267	256	53	192,05 USD
S9.020.20.2000.0	.20 / .200	267	256	53	281,23 USD
S9.020.25.1000.0	.25 / .250	317	306	53	198,69 USD
S9.020.25.2000.0	.25 / .250	317	306	53	304,49 USD
S9.011.05.1000.0	.05 / .050	119,5	80	100	173,04 USD
S9.011.07.1000.0	.07 / .070	144,5	105	100	219,44 USD
S9.011.10.1000.0	.10 / .100	169,5	130	100	Upon request
S9.011.15.1000.0	.15 / .150	214,5	175	100	Upon request
S9.021.10.1000.0	.10 / .100	196,5	156	100	262,05 USD
S9.021.15.1000.0	.15 / .150	246,5	206	100	Upon request
S9.021.20.1000.0	.20 / .200	296,5	256	100	Upon request
S9.021.25.1000.0	.25 / .250	346,5	306	100	Upon request
S9.011.05.2000.0	.05 / .050	119,5	80	100	263,32 USD
S9.011.07.2000.0	.07 / .070	144,5	105	100	325,02 USD
S9.011.10.2000.0	.10 / .100	169,5	130	100	312,25 USD
S9.011.15.2000.0	.15 / .150	214,5	175	100	Upon request
S9.021.10.2000.0	.10 / .100	196,5	156	100	367,40 USD
S9.021.15.2000.0	.15 / .150	246,5	206	100	388,43 USD
S9.021.20.2000.0	.20 / .200	296,5	256	100	344,33 USD
S9.021.25.2000.0	.25 / .250	346,5	306	100	Upon request
