Cables fitted quickly, e-chain® attached quickly - attractive design

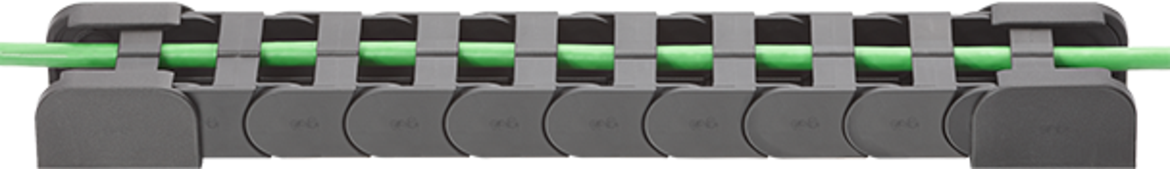

ZF14.Bi.R.0 Cables fitted quickly, e-chain® attached quickly, attractive design, nice and tidy. This e-chain® was designed and developed especially for the furniture industry.

Aesthetic design

Closed outer contours (half-tubes)

Mounting brackets easy to clip on

Easy to fill, even when installed

Cable-friendly due to smooth interior

UL94-V2 certified

Mounting brackets can be either screwed on or bonded, thanks to the large flat surface on the bottom



Typical application areas:Height adjustable furniture, miscellaneous applications without highly dynamic movements

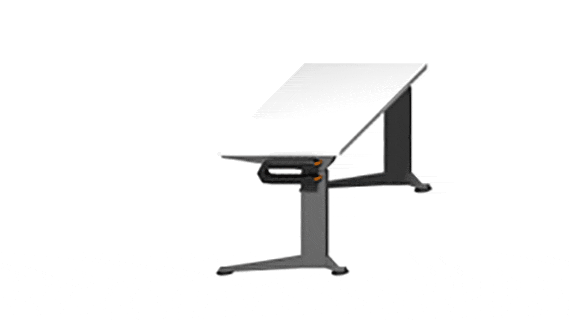

ZF14 Folding application

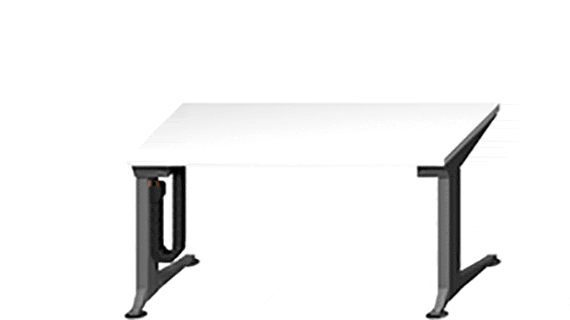

ZF14 Hanging application

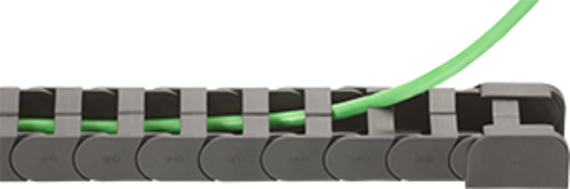

Easy insertion of cables by hand easychain® principle: Cables fitted easily by hand, even when installed.

Delivery program:

e-chain®:

Part No. Inner height
hi [mm]		 Outer height
Ha [mm]		 Inner width
Bi [mm]		 Outer width
Ba [mm]		 Bend radius
R [mm]		 pitch
[mm]		 Links per/m
ready for shipping in 24 hours ZF14.038.028.0 21 25 38 46.6 28 30.5 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog
Suitable for moving end and fixed end. e-chain® is clipped on easily.
Small barbs on mounting bracket lock onto the e-chain® opening crossbar.

Mounting bracket:

Order no. A B
ready for shipping in 48 hours ZF114.038.12.A1 12.7 34.8 Upon request Add to shopping cart
ready for shipping in 48 hours ZF114.038.12 12.7 34.8 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

Consists of 2 x ZF114.038.1

Z14 Installation video
ready for shipping in 24 hours
ready for shipping in 48 hours
