Connections, quick exchange kit, and strain relief for triflex® R

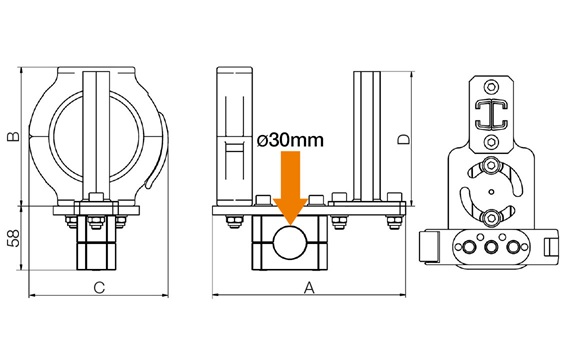

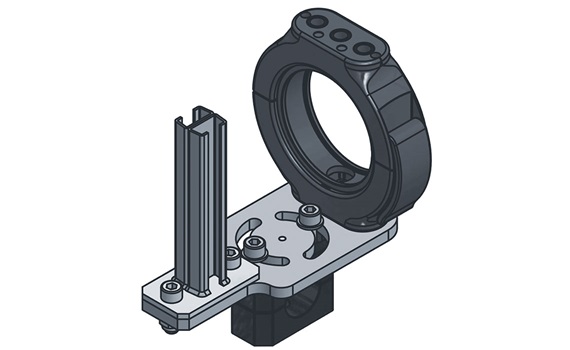

Heavy duty connection

for Axis 6 clamp

For cables with large cross sections
For heavy hydraulic hoses
Double C-profile for fastening CFX clamps
CFX clamps are not included in delivery

Note: standard clamp bracket diameter is 30 mm. 32 mm and 34 mm available upon request.

Part no.	Clamp Ø in mm	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]
TR.60.20.30	30	175	126	126	122	242,23 USD
TR.65.20.30	30	175	126	126	122	265,83 USD
TR.65.200.20.30	30	175	126	126	122	270,58 USD
TR.70.20.30	30	175	126	126	122	242,75 USD
TR.85.20.30	30	175	153	155	149	254,82 USD
TR.85.240.20.30	30	175	153	155	149	266,31 USD
TR.100.20.30	30	175	153	155	149	255,35 USD
TR.125.20.30	30	180	190	190	175	480,59 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

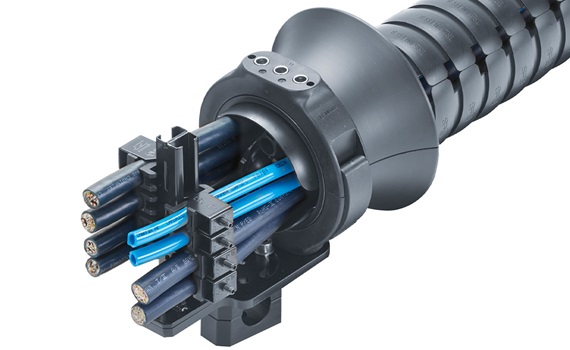

Heavy duty connection - with radius support

for Axis 6 clamp

Radius support provides additional stability and safety
For cables with large cross sections
For heavy hydraulic hoses
Double C-profile for fastening CFX clamps
CFX clamps are not included in delivery

Heavy duty connection - with radius support

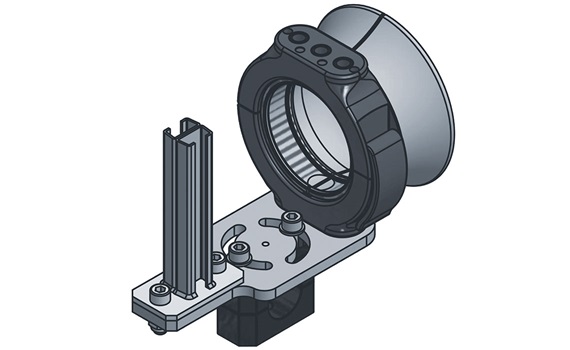

triflex R heavy duty connection with radius support, 3D

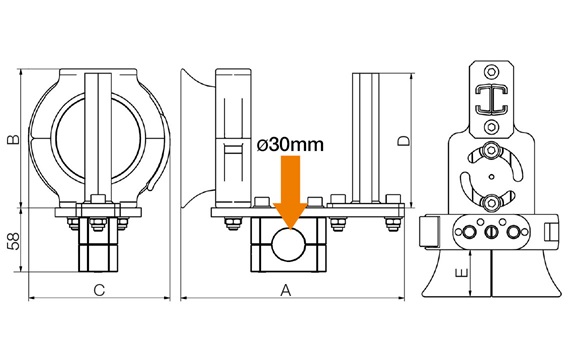

triflex R heavy duty connection with radius support, technical

Note: standard clamp bracket diameter is 30 mm. 32 mm and 34 mm available upon request.

Part no.	Clamp Ø in mm	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]
TR.60.23.30	30	209	126	130	122	38	388,56 USD
TR.65.23.30	30	214	126	130	122	45	389,31 USD
TR.70.23.30	30	214	126	130	122	43	390,14 USD
TR.85.23.30	30	222	155	155	149	49	438,87 USD
TR.100.23.30	30	240	155	155	149	67	523,47 USD
TR.125.23.30	30	252	190	190	175	72	971,76 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Compact connections with strain relief

for Axis 6 clamp

With strain relief for cables and hoses
Safe and simple securing of the cables with cable ties
Various adjustment options

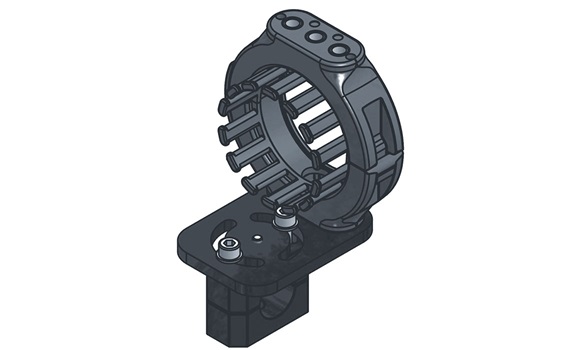

triflex R compact connection with strain relief, 3D

triflex R compact connection with strain relief, technical

Note: standard clamp bracket diameter is 30 mm. 32 mm and 34 mm available upon request.

Part no.	Clamp Ø in mm	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]
TR.40.21.01.30	30	110	85	84,5	17,8	208,52 USD
TR.50.21.01.30	30	110	85	84,5	21	211,30 USD
TR.60.21.01.30	30	110	126	126	25	222,53 USD
TR.65.21.01.30	30	110	126	126	25	330,10 USD
TR.65.200.21.01.30	30	110	126	126	25	223,84 USD
TR.70.21.01.30	30	110	126	126	25	226,01 USD
TR.85.21.01.30	30	110	153	155	38	238,41 USD
TR.85.240.21.01.30	30	110	153	155	38	246,59 USD
TR.100.21.01.30	30	110	153	155	38	239,22 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Compact connections without strain relief

for Axis 6 clamp

Without strain relief
Space-saving
Various infinite adjustment options

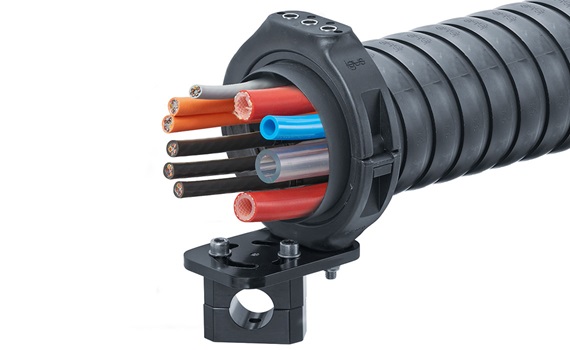

Compact bracket connection without strain relief

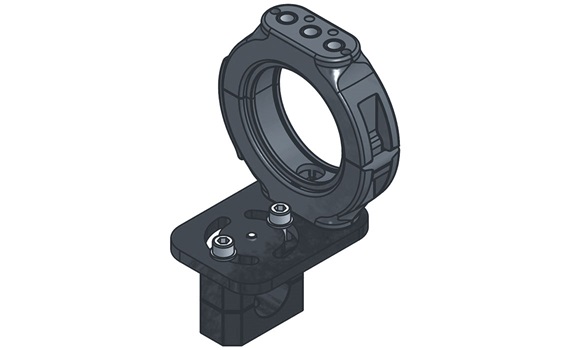

triflex R compact connection without strain relief, 3D

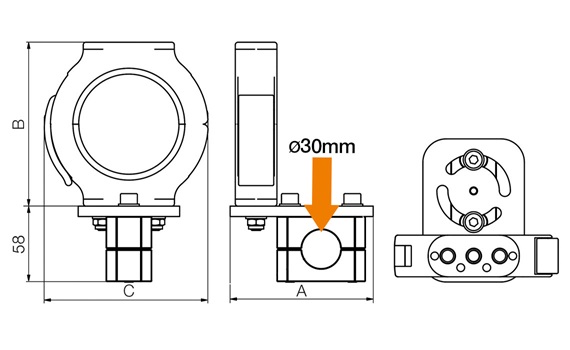

triflex R compact connection without strain relief, technical

Note: standard clamp bracket diameter is 30 mm. 32 mm and 34 mm available upon request.

Part no.	Clamp Ø in mm	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]
TR.40.21.02.30	30	110	85	84,5	208,02 USD
TR.50.21.02.30	30	110	85	84,5	211,08 USD
TR.60.21.02.30	30	110	126	126	215,33 USD
TR.65.21.02.30	30	110	126	126	247,48 USD
TR.65.200.21.02.30	30	110	126	126	283,29 USD
TR.70.21.02.30	30	110	126	126	224,85 USD
TR.85.21.02.30	30	110	153	155	233,47 USD
TR.85.240.21.02.30	30	110	153	155	234,98 USD
TR.100.21.02.30	30	110	153	155	234,44 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Quick exchange kit

for Axis 6 clamp

Exchange in seconds
One-time-only alignment
No repeat alignment required when a readychain® is replaced
triflex® readychain® can be replaced without tools

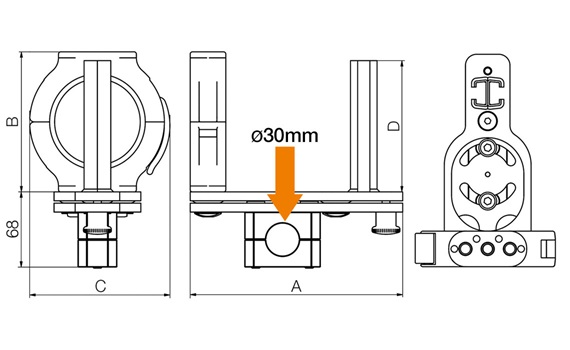

triflex R quick exchange kit technical drawing

Note: standard clamp bracket diameter is 30 mm. 32 mm and 34 mm available upon request.

Part no.	Clamp Ø in mm	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]
TR.60.22.30	30	191	126	126	126	409,23 USD
TR.65.22.30	30	191	126	126	126	420,26 USD
TR.65.200.22.30	30	191	126	126	126	461,75 USD
TR.70.22.30	30	191	126	126	126	409,75 USD
TR.85.22.30	30	191	153	155	153	416,34 USD
TR.85.240.22.30	30	191	153	155	153	424,33 USD
TR.100.22.30	30	191	153	155	153	429,36 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

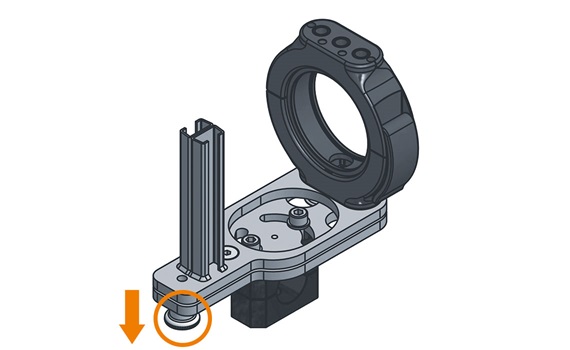

Quick exchange kit function

Dress pack can be replaced very quickly
Pull the locking pin
Undo the connection
Install the new, pre-assembled dress pack

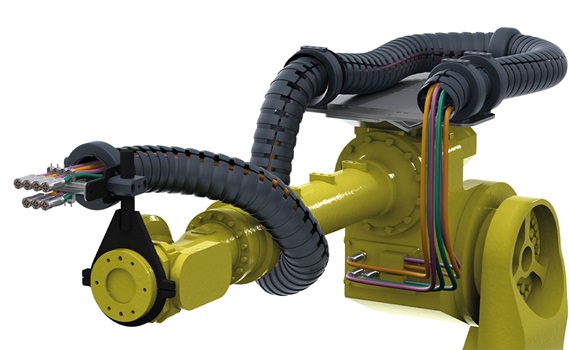

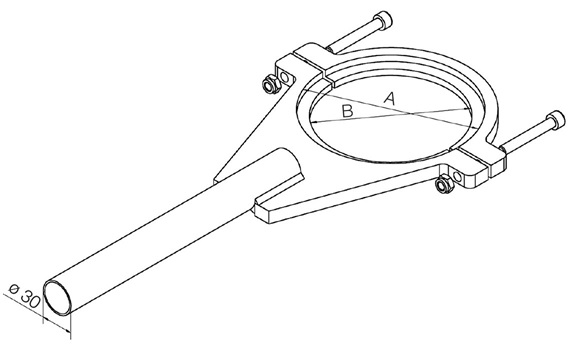

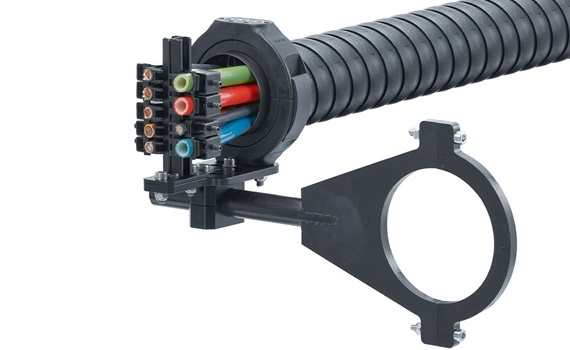

Clamp for Axis 6

For fastening the various connections

An axis diameter (Ø 30 mm) for all robots
Easy and fast assembly
Ensures spacing between the e-chain® and robots
Attachment option for heavy-duty connection, compact connection, and quick exchange kit

Part no.	Robot type	Dim. A [mm]	Dim. B [mm]	Weight [kg]
TR.907.901	KUKA Quantec(-2), large flange	205	190	2,5	346,87 USD
TR.907.667.140	KUKA Quantec, small flange	140	140	2,2	262,02 USD
TR.907.857					302,85 USD
TR.907.667.220					301,15 USD
TR.907.992	Fanuc R-2000iA iB & iC	165	160	2,4	346,87 USD
TR.908.065					330,94 USD
TR.907.667.200	ABB IRB 6640	200	200	2,7	287,89 USD
TR.907.667.150					333,49 USD
TR.907.667.125					245,71 USD
TR.907.667.160					310,36 USD
TR.907.667.180					261,97 USD
TR.907.667.190					272,40 USD
TR.907.667.250	ABB IRB 7600	250	250	3,5	333,49 USD
TR.907.667.315					402,52 USD
TR.908.115					591,17 USD
TR.908.347					675,03 USD
TR.909.387					575,31 USD
TR.910.544		145	125		323,27 USD
TR.912.328	KUKA Fortec	235	220	2,7	428,16 USD
TR.918.027	Universal Robot UR3(e)	63	63	0,195	143,64 USD
TR.918.012	Universal Robot UR5(e)	75	75	0,23	143,64 USD
TR.918.002	Universal Robot UR10(e)	90	90	0,253	143,64 USD
TR.907.667.142	Hyundai HX 165	142	142	2,25	262,02 USD
TR.907.667.275	Fanuc M900iA 200P	275	275	3,4	926,02 USD
TR.919.994					Upon request

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

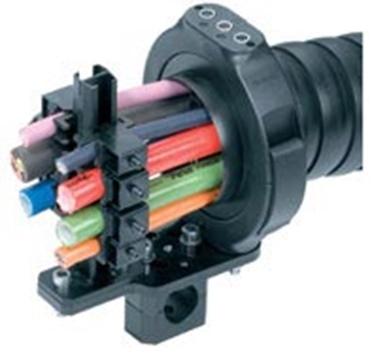

Strain reliefs (only for TRC/TRE)

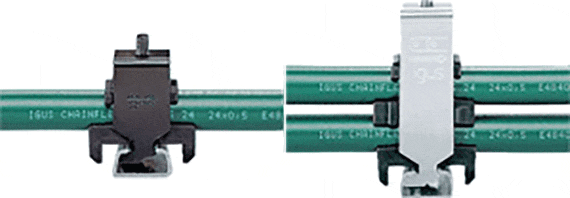

Secure mounting of large cross sections with igus® standard Chainfix clamps

For cables with large cross sections for such applications as welding or heavy hydraulic hoses
Double C-profiles for igus® CFX clips
Robust strain relief for difficult applications
igus® chainfix clamps made of stainless steel or steel can be used

chainfix clamps, incl. bottom saddles

Three variants available for each size
Can be adjusted multi-axially for optimum positioning
Suits all additional axles: Ø 30 mm, Ø 32 mm, Ø 34 mm
chainfix clamps reliably absorb push and tensile forces even with larger cable diameters
Specifically recommended when using solid welding cables and rigid hydraulic hoses
For use with heavy-duty connection TR.XX.20 / TR.XX.23 and quick release unit TR.XX.22

Steel

Part No.	Ø	B⁺²	H
Steel	[mm]	[mm]	[mm]
CFX12.1	06 - 12	16	54	Upon request
CFX14.1	12 - 14	18	50	Upon request
CFX16.1	14 - 16	20	52	Upon request
CFX18.1	16 - 18	22	54	Upon request
CFX20.1	18 - 20	24	56	Upon request
CFX22.1	20 - 22	26	58	Upon request
CFX26.1	22 - 26	30	67	Upon request
CFX30.1	26 - 30	34	71	Upon request
CFX34.1	30 - 34	38	75	Upon request
CFX38.1	34 - 38	42	79	Upon request
CFX42.1	38 - 42	46	83	Upon request
CFX46.1	42 - 46	51	115	Upon request
CFX50.1	46 - 50	55	121	Upon request

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Stainless steel (1.4301/AISI 304):

Part.No.	Ø	B⁺²	H
Stainless steel	[mm]	[mm]	[mm]
CFX12.1.E	6 - 12	16	54	Upon request
CFX14.1.E	12 - 14	18	50	Upon request
CFX16.1.E	14 - 16	20	52	Upon request
CFX18.1.E	16 - 18	22	54	Upon request
CFX20.1.E	18 - 20	24	56	Upon request
CFX22.1.E	20 - 22	26	58	Upon request
CFX26.1.E	22 - 26	30	67	Upon request
CFX30.1.E	26 - 30	34	71	Upon request
CFX34.1.E	30 - 34	38	75	Upon request
CFX38.1.E	34 - 38	42	79	Upon request
CFX42.1.E	38 - 42	46	83	Upon request
CFX46.1.E	42 - 46	46	122	Upon request
CFX50.1.E	46 - 50	46	125	Upon request

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Go to Chainfix clamp catalog pages

ready for shipping in 24 hours

Delivery time on request
