triflex® R TRC, TRE and TRL accessories: protectors and protective jackets

Extra safety under extreme operating conditions

Protector with quick-release

Easy and fast assembly
No extra screws
Opened just with a screwdriver
For triflex® R Type TRC, TRE and TRL

Quick-release protector

Part No.	Width index	Outer diameter	Width
TR.40.30	40	55	27	19,48 USD
TR.50.30	40	69	34	19,93 USD
TR.60.30	60	80	40	20,34 USD
TR.65.30	60	88	44	25,43 USD
TR.70.30	70	102	50	31,58 USD
TR.85.30	85	118	59	33,04 USD
TR.100.30	100	133	67	33,47 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Screwed-on protector

Connected with screws
Shock-resistant
Easy gliding over edges
Can be freely positioned, on two successive chain links

Quick-release protector

Part No.	Width index	Outer diameter	Width
TR.40.10	40	55	27	16,23 USD
TR.50.10	50	69	34	51,81 USD
TR.60.10	60	80	40	16,93 USD
TR.65.10	65	88	44	57,51 USD
TR.70.10	70	102	50	26,33 USD
TR.85.10	85	118	59	26,51 USD
TR.85.240.10	85	120	63	113,58 USD
TR.100.10	100	133	67	27,90 USD
TR.125.10	125	170	82	313,89 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Protective jackets

Standard

Base support: fabric
Coating: polymer
Easy to change due to the Velcro fastening on the longitudinal side
Elastic band sealing
Silicone-free
Standard lengths from stock
For applications with varnishes, paints, sealants, adhesives, etc.

	Part No.	Standard lengths
ø index:	XX=Jacket length	[mm]

40.	TR.40.14.XX	500 1000 1500 2000
50.	TR.50.14.XX¹⁾	500 1000 1500 2000
60.	TR.60.14.XX	500 1000 1500 2000
65.	TR.65.14.XX¹⁾	500 1000 1500 2000
70.	TR.70.14.XX	500 1000 1500 2000
85.	TR.85.14.XX	500 1000 1500 2000
100.	TR.100.14.XX	500 1000 1500 2000
125.	TR.125.14.XX	500 1000 1500 2000

1) Available upon request. Delivery time upon request

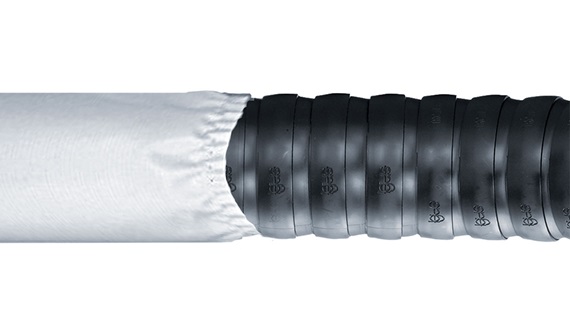

triflex® R standard protective jacket

Heat-proof hose

Made from heat-resistant, abrasion-resistant Kevlar weave
Protects from perspiration and metal spatter briefly up to +540°C
High abrasion resistance
Very tight sealing
For robust environments
Easy to replace or retrofit with zipper
Velcro straps at the beginning and end
Strong design
Silicone-free
Standard lengths from stock

Heat protection jacket	Part No.	Standard lengths
Width index:	XX=Jacket length	[mm]

40.	TR.40.18.XX	500 1000 1500 2000
50.	TR.50.18.XX¹⁾	500 1000 1500 2000
60.	TR.60.18.XX	500 1000 1500 2000
65.	TR.65.18.XX¹⁾	500 1000 1500 2000
70.	TR.70.18.XX	500 1000 1500 2000
85.	TR.85.18.XX	500 1000 1500 2000
100.	TR.100.18.XX	500 1000 1500 2000
125.	TR.125.18.XX	500 1000 1500 2000

1) Available upon request. Delivery time upon request

triflex® R heat protection jacket

Wear-resistant protective hose

Extremely high abrasion resistance
Black leather
For use in temperatures from -40°C to +100°C
Very flexible
Easy to replace or retrofit
Silicone-free
Standard lengths from stock

Heat protection jacket	Part No.	Standard lengths
Width index:	XX=Jacket length	[mm]

40.	TR.40.19.XX	500 1000 1500 2000
50.	TR.50.19.XX¹⁾	500 1000 1500 2000
60.	TR.60.19.XX	500 1000 1500 2000
65.	TR.65.19.XX¹⁾	500 1000 1500 2000
70.	TR.70.19.XX	500 1000 1500 2000
85.	TR.85.19.XX	500 1000 1500 2000
100.	TR.100.19.XX	500 1000 1500 2000
125.	TR.125.19.XX	500 1000 1500 2000

1) Available upon request. Delivery time upon request

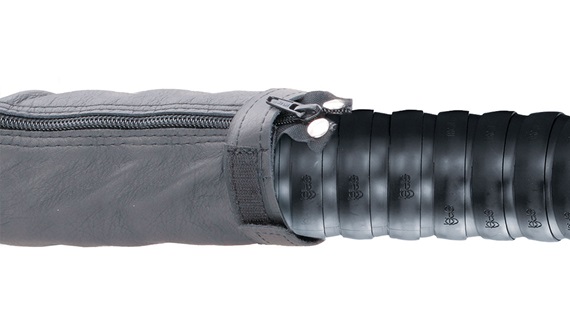

triflex® R abrasion protection jacket

ready for shipping in 48 hours

ready for shipping in 5 days
