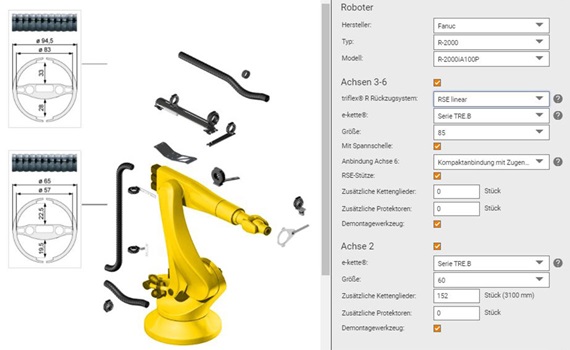

The purpose of the triflex® RSE retraction system is to hold the e-chain® to the robotic arm as closely as possible - this prevents the e-chain® from intefering with the robot's movements. The triflex® RSE is a particularly lightweight and cost-effective retraction system

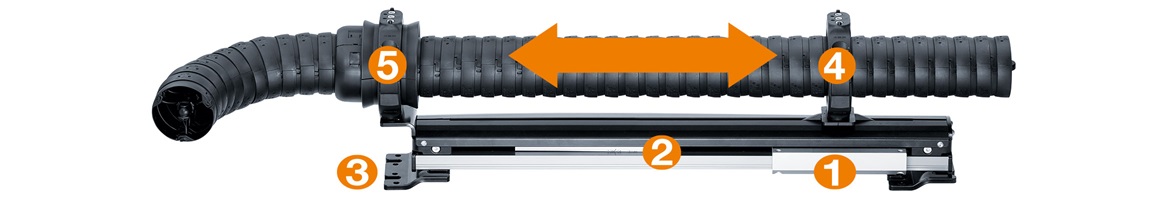

drylin® linear guide with carriage
2Elastic cord or tension spring for retraction
3Mounting plates for flexible connection to a wide range of robot types
4Mounting bracket without strain relief of the corresponding e-chain® size
5Smooth feed-through of the corresponding e-chain® size
| Part no. | e-chain series that goes with it | triflex® R variants | ||
|---|---|---|---|---|
| TR.RSE.40 | TRC.40.058.0 | TRE.40.058.0.B | TRE, TRC | 593,38 USD | |
| TR.RSE.50 | TRC.50.080.0 | TRE.50.080.0.B | TRE, TRC | 653,91 USD | |
| TR.RSEC.60 | TRE.60.087.0.B | TRC.60.087.0 | TRE, TRC | 699,87 USD | |
| TR.RSEC.65 | TRCF.65.100.0 | TRCF | 728,54 USD | |
| TR.RSE.60 | TRE.60.087.0.B | TRC.60.087.0 | TRE, TRC | 1.356,99 USD | |
| TR.RSE.65 | TRCF.65.100.0 | TRCF.65.200.0 | TRE, TRC | 1.382,21 USD | |
| TR.RSE.70 | TRE.70.110.0.B | TRC.70.110.0 | TRE, TRC | 1.362,34 USD | |
| TR.RSE.85 | TRE.85.135.0.B | TRC.85.135.0 | TRCF.85.135.0 | TRE, TRC, TRCF | 1.384,67 USD | |
| TR.RSE.85.240 | TRCF.85.240.0 | TRCF | 1.392,66 USD | |
| TR.RSE.100 | TRE.100.145.0.B | TRE.100.145.0.C | TRC.100.145.0 | TRCF.100.145.0 | TRE, TRC, TRCF | 1.501,25 USD |

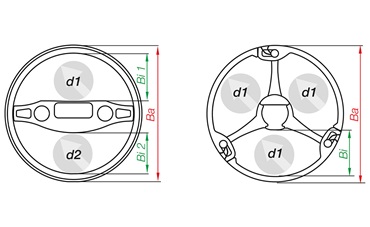

| Part no. | Bi1 in mm | Bi2 in mm | BA in mm | R in mm | d1 in mm | d2 in mm | Pitch in mm | per chain link | |
|---|---|---|---|---|---|---|---|---|---|
| TRC.60.087.0 | 22,5 | 19,5 | 65 | 87 | 20,5 | 17,5 | 20,4 | 2,67 USD | |
| TRC.70.110.0 | 28 | 24 | 81 | 110 | 26 | 22 | 25,6 | 4,17 USD | |
| TRC.85.135.0 | 33 | 28 | 94,5 | 135 | 31 | 26 | 30,6 | 5,34 USD | |
| TRC.100.145.0 | 37,5 | 32,5 | 108 | 145 | 35,5 | 30,5 | 34,5 | 6,26 USD | |
| TRC.125.182.0 | 43,3 | 43,3 | 135 | 182 | 41 | 41 | 44,1 | 10,43 USD | |
| TRCF.65.100.0 | 22,3 | 0 | 70,2 | 100 | 20 | 0 | 23,1 | 4,72 USD | |
| TRCF.65.200.0 | 22,3 | 0 | 70,2 | 200 | 20 | 0 | 23,1 | 5,33 USD | |
| TRCF.85.135.0 | 30 | 0 | 94,5 | 135 | 28 | 0 | 30,6 | 6,94 USD | |
| TRCF.85.240.0 | 30 | 0 | 94,5 | 240 | 28 | 0 | 30,6 | 6,94 USD | |
| TRCF.100.145.0 | 34,3 | 0 | 108 | 145 | 32 | 0 | 34,5 | 8,15 USD |
| Part no. | Bi1 in mm | Bi2 in mm | BA in mm | R in mm | d1 in mm | d2 in mm | Pitch in mm | ||
|---|---|---|---|---|---|---|---|---|---|
| TRE.60.087.0.B | 22,5 | 19,5 | 65 | 87 | 20,5 | 17,5 | 20,4 | 2,87 USD | |
| TRE.60.087.0 | 22,5 | 19,5 | 65 | 87 | 20,5 | 17,5 | 20,4 | Upon request | |
| TRE.70.110.0.B | 28 | 24 | 81 | 110 | 26 | 22 | 25,6 | 4,52 USD | |
| TRE.70.110.0 | 28 | 24 | 81 | 110 | 26 | 22 | 25,6 | Upon request | |
| TRE.85.135.0.B | 33 | 28 | 94,5 | 135 | 31 | 26 | 30,6 | 5,85 USD | |
| TRE.85.135.0 | 33 | 28 | 94,5 | 135 | 31 | 26 | 30,6 | Upon request | |
| TRE.100.145.0.B | 37,5 | 32,5 | 108 | 145 | 35,5 | 30,5 | 34,5 | 6,76 USD | |
| TRE.100.145.0.C | 37,5 | 32,5 | 108 | 145 | 35,5 | 30,5 | 34,5 | 7,95 USD | |
| TRE.100.145.0 | 37,5 | 32,5 | 108 | 145 | 35,5 | 30,5 | 34,5 | Upon request | |
| TRE.125.182.0 | 43,3 | 43,3 | 135 | 182 | 43 | 43 | 44,1 | 11,27 USD |
| ø index | R [mm] | Dim. 2 [mm] |
|---|---|---|
| 30. | - | - |
| 40. | 058 | 390 |
| 50. | 080 | 390 |
| 60. | 087 | 750 |
| 65 | 100 | 750 |
| 70. | 110 | 750 |
| 85. | 135 | 750 |
| 85. (R 240) | 240 | 750 |
| 100. | 145 | 750 |
| 125. | 182 | 750 |

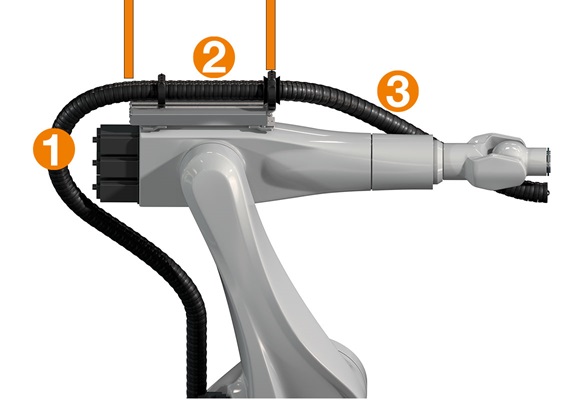

Total chain length calculation: Dimension 1 + 2 + 3
You can determine Dimensions 1 and 3 yourself according to your application or robot type.

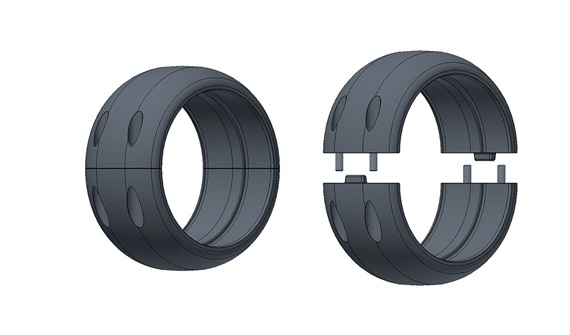

| Part No. | Width index | Outer diameter | Width | |||
|---|---|---|---|---|---|---|
| TR.40.30 | 40 | 55 | 27 | 19,48 USD | ||
| TR.50.30 | 40 | 69 | 34 | 19,93 USD | ||
| TR.60.30 | 60 | 80 | 40 | 20,34 USD | ||
| TR.65.30 | 60 | 88 | 44 | 25,43 USD | ||
| TR.70.30 | 70 | 102 | 50 | 31,58 USD | ||
| TR.85.30 | 85 | 118 | 59 | 33,04 USD | ||
| TR.100.30 | 100 | 133 | 67 | 33,47 USD |

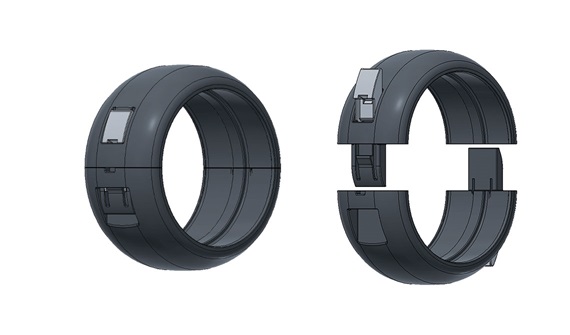

| Part No. | Width index | Outer diameter | Width | |||
|---|---|---|---|---|---|---|
| TR.40.10 | 40 | 55 | 27 | 16,23 USD | ||
| TR.50.10 | 50 | 69 | 34 | 51,81 USD | ||
| TR.60.10 | 60 | 80 | 40 | 16,93 USD | ||
| TR.65.10 | 65 | 88 | 44 | 57,51 USD | ||
| TR.70.10 | 70 | 102 | 50 | 26,33 USD | ||
| TR.85.10 | 85 | 118 | 59 | 26,51 USD | ||
| TR.85.240.10 | 85 | 120 | 63 | 113,58 USD | ||
| TR.100.10 | 100 | 133 | 67 | 27,90 USD | ||
| TR.125.10 | 125 | 170 | 82 | 313,89 USD |
