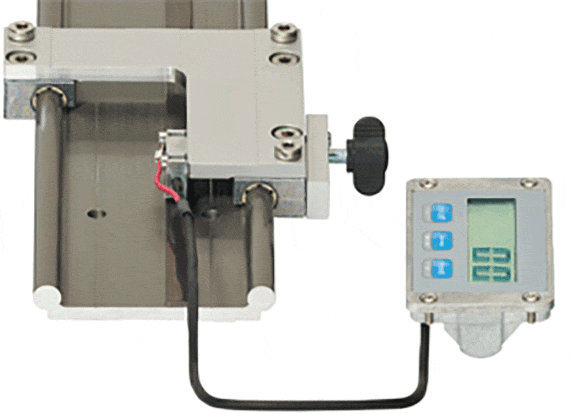

drylin® W measuring system

With additional freely positionable readout display

1. Energy chain 047.10.028.0.xxx not included
2. Options for mounting the external display

The reading of the measured data at the desired position allows the ideal ergonomic design in the work environment, thereby reducing the risk of reading errors. The complete system (sensor/readout display/magnetic tape/linear guide) is delivered ready for use. The linear guide drylin® W is lubrication-free and dirt-resistant.

External display

Any position

Suitable for aluminium design profiles

Adaptation horizontal or vertical

Lubrication-free

Typical application areas:Packaging industry, profile processing, cutting tube to length

Dimensions measuring system [mm]

Order number	A	C	A2	C2	K2	H2	Am	Bm	Tm
	Width	Length				±0,17
WKMEDR(L)*-10-80-10-…	107	100	94	87	M6	24	82	51	25	Enquiries

* Assembly right (R) or left (L) from guide carriage

Dimensions-Display incl. support [mm]

	Ah	Bh	Ch	Sh	Kh	Th
WMY-0301	61	125	40	14	5,4	22	Upon request
WMY-0302	94,5	92	70	14	5,4	22	Upon request

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Technical data

Technical data
Measuring principle	incremental, with absolute value function through battery buffer
Display	Lowest Power LCD with integrated sensor, independent of network
Display accuracy	max. 0.1 mm
Repeat accuracy	± 1 digit
Display/Display range	-99 999 …+99 999
Function	Incremental measurement and reset function
Function	Direct input offset value
Supply	Integrated battery, up to 10 years lifespan
Magnetic sensor	Firmly connected
Bearing Type	Installation housing
Connector Housing	Zinc die cast
Protection class	IP20 Entire device
Protection class	IP60 Display screen
Operating temperature	0…+60°C
Air humidity	95% rh condensation inadmissible
Speed (travel)	Max. 3,5 m/s
