drylin® Q with integrated measuring system
Thanks to its flexibility, the drylin® linear carriage QWE-01-20 forms the ideal basis for integrating the new digital length measuring system. The square profile can be installed unsupported and offers optimum protection for the magnetic tape on the interior thanks to its hollow chamber principle. The ball-andsocket joint makes it possible to flexibly read the display.
Protected magnetic tape
Attachment options via slot nuts
Hand clamp on carriage
Unsupported attachment
Profile AWMQ-20 max. length 1.500 mm
Space-saving sensor integrated in the carriage

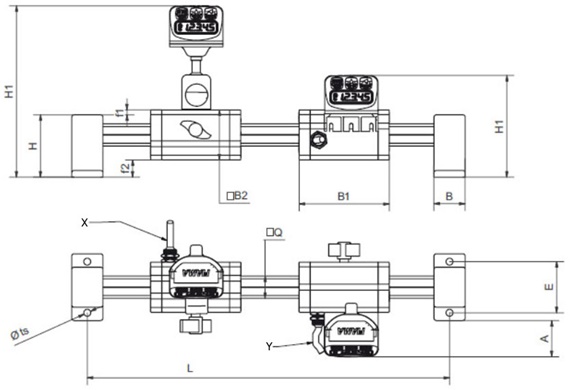

Dimensions [mm]
| Part number | M max. | L | B | B1 | B2 | H | H1 | E | Q | ts | f1 | f2 | A | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [Nm] | Shaft end support + carriage + stroke | h7 | |||||||||||||
| QKM-01-20 | 10 | 28 + 94 | 28 | 94 | 45 | 58 | 155 | 46 | 20 | 6,2 | 4,5 | 15,5 | 33 | Upon request | |
| QKM-02-20 | 10 | 28 + 94 | 28 | 94 | 45 | 58 | 92 | 46 | 20 | 6,2 | 4,5 | 15,5 | 33 | Upon request |
More about selected part:
Option 01:

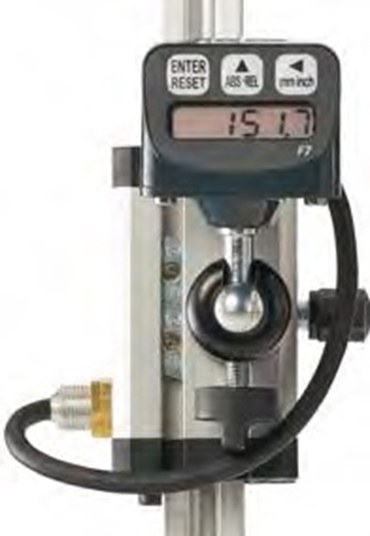

The flexible solution when the reading device should be angled. With locking ball and socket joint. QKM-01-20

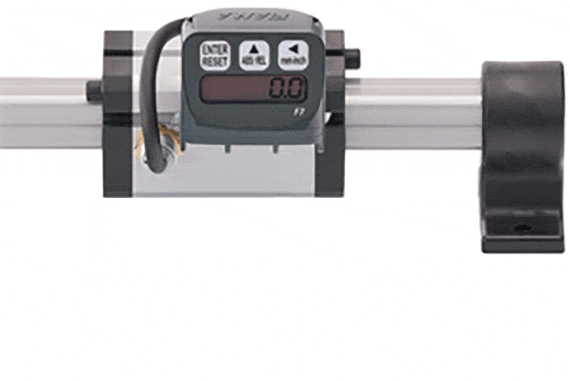

Option 02:QKM-02-20 with fixed display
| Measuring indicator specifications | ||
|---|---|---|
| Measuring principle | incremental, with absolute value function through battery buffer | |
| display | LCD display 7.5 mm digit height | |
| Display accuracy | max. 0,1 mm | Display/Display range | -99 999 …+99 999 |
| Function | Digit direction, decimal point, unit of measurement (mm,inch), preset activation | |
| Supply | Battery 1/2 AA, 3.6 V integrated, service life of up to 4 years | |
| Magnetic sensor | securely connected (external) | Bearing Type | Installation housing |
| Connector Housing | Plastic | |
| Protection class | IP54 display IP67 sensor |
|
| Operating temperature | 0…+50°C | |
| Air humidity | 35-85% | |
| Speed (travel) | max. 2,5 m/s | |
| Display keyboard | 3 function buttons | |
ready for shipping in 4 weeks
