triflex® R mounting brackets for universal robots (metal)

As a manufacturer of high-quality, hard-wearing, lightweight and, in this case, cost-effective polymer parts, we have long considered simply discontinuing the Universal Robots metal clamps from our range. Because the new cobot clamps are actually so much better.

However, there are also supporters/lovers of this part, which is why we decided to leave it online after all.

Decide for yourself, but the delivery time of the new cobot clamps is also significantly shorter.

Go to the new cobot clamps

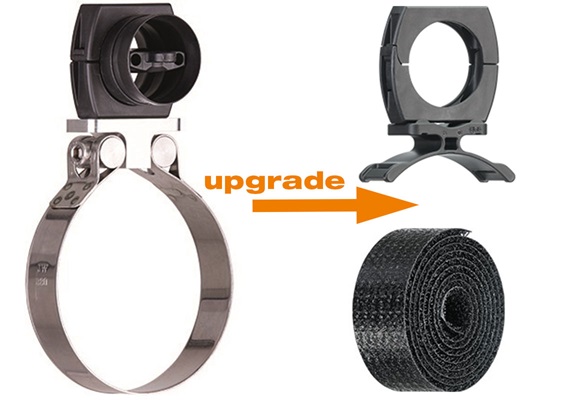

UR metal clamp

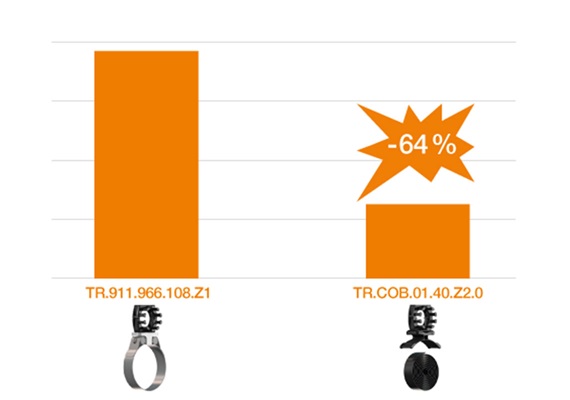

Metal vs. Plastic

Advantages of plastic compared to metal

Weight saving
Cost saving
No paint scratches
Significantly shorter installation time
Short delivery time

Application example with metal clamps

Safe cable guidance with triflex® R on Universal Robots, which the new cobot clamps also do
Simple but much slower connection with screw clamps compared to the new cobot clamps.
For 2 triflex® R sizes - Ø 30 and 40
Only for UR3, UR5 and UR10. The new cobot clamps also fit on the UR16
For TRC, TRE and TRL e-chains®.

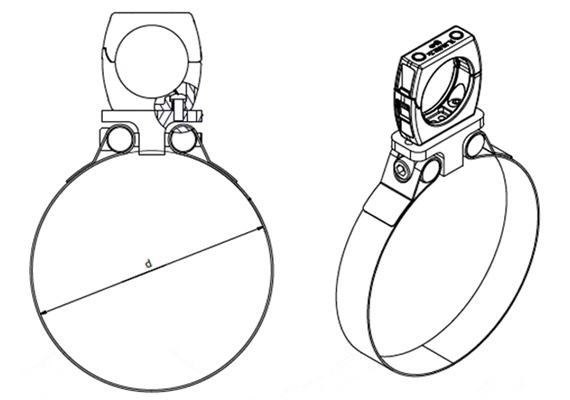

Diameter of UR metal clamps

triflex UR metal clamps diameter

Select according to the nominal diameter of the UR robot

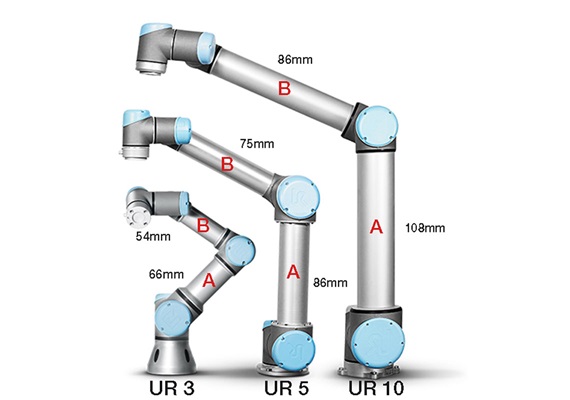

UR3, 5, 10 arm diameters

triflex_R_UR_Types

The position on the robot determines the diameter

Order No.	Nominal diameter Ø	for mounting bracket	Job title	for UR robots	with teeth
TR.911.965.054.Z0	54	TL.30.01.Z0	B	UR 3		57,00 USD
TR.911.965.066.Z0	66	TL.30.01.Z0	A	UR 3		58,84 USD
TR.911.965.075.Z0	75	TL.30.01.Z0	B	UR 5		59,39 USD
TR.911.965.086.Z0	86	TL.30.01.Z0	A for UR5 / B for UR10	UR5 / UR 10		60,61 USD
TR.911.965.100.Z0	100			UR 5		Upon request
TR.911.965.108.Z0	108	TL.30.01.Z0	A	UR 10		63,18 USD
TR.911.965.054.Z1	54	TL.30.01.Z1	B	UR 3	X	57,07 USD
TR.911.965.066.Z1	66	TL.30.01.Z1	A	UR 3	X	58,90 USD
TR.911.965.075.Z1	75	TL.30.01.Z1	B	UR 5	X	59,44 USD
TR.911.965.086.Z1	86	TL.30.01.Z1	A for UR5 / B for UR10	UR5 / UR 10	X	60,66 USD
TR.911.965.100.Z1	100			UR 5	with strain relief	Upon request
TR.911.965.108.Z1	108	TL.30.01.Z1	A	UR 10	X	63,25 USD
TR.911.966.054.Z0	54	TL.40.01.Z0	B	UR 3		61,34 USD
TR.911.966.066.Z0	66	TL.40.01.Z0	A	UR 3	Up	63,18 USD
TR.911.966.075.Z0	75	TL.40.01.Z0	B	UR 5		63,73 USD
TR.911.966.086.Z0	86	TL.40.01.Z0	A for UR5 / B for UR10	UR5 / UR 10		64,94 USD
TR.911.966.100.Z0	100			UR 5		Upon request
TR.911.966.108.Z0	108	TL.40.01.Z0	A	UR 10		67,52 USD
TR.911.966.054.Z1	54	TL.40.01.Z1	B	UR 3	X	61,41 USD
TR.911.966.066.Z1	66	TL.40.01.Z1	A	UR 3	X	63,25 USD
TR.911.966.075.Z1	75	TL.40.01.Z1	B	UR 5	X	63,78 USD
TR.911.966.086.Z1	86	TL.40.01.Z1	A for UR5 / B for UR10	UR5 / UR 10	X	64,99 USD
TR.911.966.100.Z1	100			UR 5	with strain relief	Upon request
TR.911.966.108.Z1	108	TL.40.01.Z1	A	UR 10	X	67,57 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Metal clamp assembly video

Installation video plastic clamps

Matching triflex® e-chains®:

Series TRC:

Closed design

Chip protection

Smooth exterior

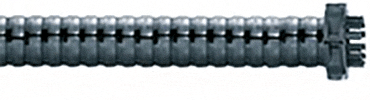

Series TRE:

"easy" design

Very easy to fill

Simply press cables in

Series TRL:

Light alternative with "easy" design

Very easy to fill

Cost-effective

TRC

TRC.40.058.0

Go to product page

TRE

TRE.40.058.0.B

Go to product page

TRL

TRL.40.058.0

Go to product page

TRC

TRC.30.050.0

Go to product page

TRE

TRE.30.050.0

Go to product page

TRL

TRL.30.050.0

Go to product page
