Stepper motors

Stepper motors from igus® are maintenance-free and durable, available in various sizes and extendable with metric connectors, brakes and encoders.  The stepper motors are available in several installation sizes: NEMA 11,17, 23, 23 XL, 34 - with flange dimensions from 28 mm to 86 mm. They work reliably at temperatures between -10 and +50°C. And thanks to a standardised electrical connection, they can not only be connected to the igus® motor controls, but also to most commonly available control systems of other manufacturers.

The benefits at a glance:

  • Compatible with the most common motor controls
  • Positioning also possible without encoder
  • Available in several installation sizes
  • High torques
  • Optionally available for higher plant reliability: encoder and brake
  • High protection class IP68

Configurator for drive technology with motor

Configurator for drive technology with motor

Here you can assemble a complete linear axis including motor, connection cables and attachments with a few clicks.
Categories
Drive technology
Linear modules with lead screw
Linear modules with toothed belt
Linear modules with toothed racks
XY tables
Electric motors
Stepper motors
DC motors
EC/BLDC motors
Linear actuators
Motor gearbox
Motor control systems
Coupling
Accessories
Filter
Size
Electrical information
Fitting
System
Design
List
Tile

Number of products: 61

drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA17
drylin® E stepper motor, stranded wires with JST connector and encoder, NEMA17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Nominal current: 1.80A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
146.21 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA23
drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA23
  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Nominal current: 4.20A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
180.03 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA24
drylin® E lead screw stepper motor, stranded wires with JST connector and encoder, NEMA24
  • Installation size: NEMA24/flange dimension 60mm
  • Protection class: IP40
  • Holding torque: 3.50Nm
  • Nominal current: 4.20A
  • Motor connections: stranded wires with JST connector, encoder with JST connector
185.58 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

drylin® E stepper motor, stranded wires with Molex connector and encoder, NEMA34
drylin® E stepper motor, stranded wires with Molex connector and encoder, NEMA34
  • Installation size: NEMA 34/flange dimension 86mm
  • Protection class: IP40
  • Holding torque: 5.90Nm
  • Nominal current: 6.40A
  • Motor connections: stranded wires with Molex connector, encoder with JST connector
286.53 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
New

drylin® E stepper motor, connection cable, NEMA 17
drylin® E stepper motor, connection cable, NEMA 17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP65
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connection: connection cable 1m
57.54 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
New

drylin® E stepper motor, connection cable, NEMA 23
drylin® E stepper motor, connection cable, NEMA 23
  • Installation size: NEMA23/Flange dimension 56mm
  • Protection class: IP65
  • Holding torque: 2.00Nm
  • Nominal current: 4.20A
  • Motor connection: connection cable 1m
94.71 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
New

drylin® E stepper motor, connection cable, NEMA 24
drylin® E stepper motor, connection cable, NEMA 24
  • Installation size: NEMA24/flange dimension 60mm
  • Protection class: IP65
  • Holding torque: 3.50Nm
  • Nominal current: 4.20A
  • Motor connection: connection cable 1m
112.79 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
New

drylin® E stepper motor, connection cable, NEMA34
drylin® E stepper motor, connection cable, NEMA34
  • Installation size: NEMA 34/flange dimension 86mm
  • Protection class: IP65
  • Holding torque: 5.90Nm
  • Nominal current: 6.40A
  • Motor connection: connection cable 1m
214.29 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

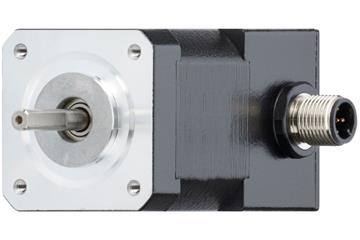

drylin® E stepper motor with connector, NEMA 17
drylin® E stepper motor with connector, NEMA 17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connection: Metric M12 connector
162.96 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

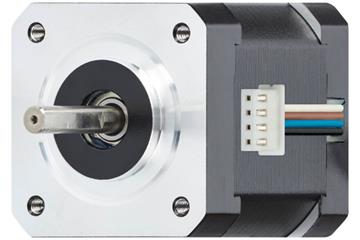

drylin® E stepper motor with stranded wire, NEMA 17
drylin® E stepper motor with stranded wire, NEMA 17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.5Nm
  • Rated current: 1.80A
  • Motor connection: stranded wires with JST connector
62.74 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

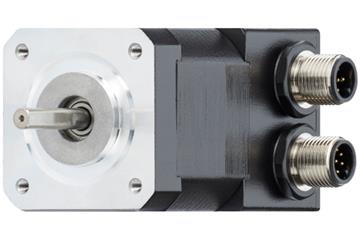

drylin® E stepper motor with connector and encoder, NEMA 17
drylin® E stepper motor with connector and encoder, NEMA 17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connections: Metric M12 connectors
310.80 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

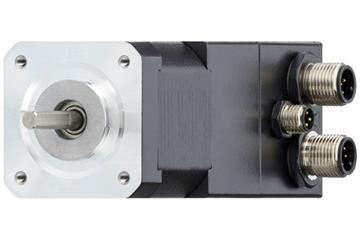

drylin® E stepper motor with connector, encoder and brake, NEMA 17
drylin® E stepper motor with connector, encoder and brake, NEMA 17
  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connections: Metric M8/M12 connectors
  • Brake voltage: 24V
  • Integrated brake for vertical loads
883.16 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

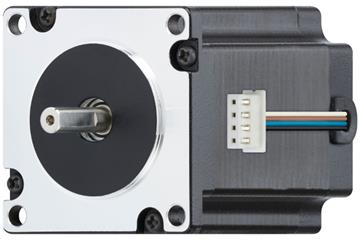

drylin® E stepper motor, stranded wires with JST connector, NEMA23
drylin® E stepper motor, stranded wires with JST connector, NEMA23
  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Motor connection: stranded wires with JST connector
117.27 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

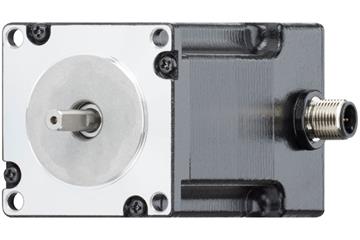

drylin® E stepper motor with connector, NEMA 23
drylin® E stepper motor with connector, NEMA 23
  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Motor connection: Metric M12 connector
198.21 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

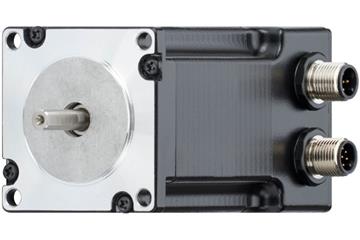

drylin® E stepper motor with connector and encoder, NEMA 23
drylin® E stepper motor with connector and encoder, NEMA 23
  • Installation size: NEMA23/flange dimension 56mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Motor connections: Metric M12 connectors
343.70 USD/Pc.
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
