Direct-current motors

The DC motors of the drylin® E series are suitable for simple linear movements without complex external power electronics. They are quiet, effective and compact – and no longer rely on motor flange and coupling in a particularly space-saving design.

The benefits at a glance

  • Operation via power supply, battery or motor control
  • Compact design
  • Temperature resistant between -10 and +60°C
  • Particularly space-saving design without motor flange and coupling

Categories
Filter
Size
Electrical information
System
Design

Number of products: 6

drylin® E DC motor with planetary gearbox and protective housing

  • Installation size: flange dimension 36/42mm
  • Protection class: IP41
  • Torque: 0.1Nm to 1.5N
  • Operating voltage: 12VDC & 24VDC
  • Speed: up to 440rpm
  • Direct battery operation possible
  • Motor connection: Metric M12 connector
207,06 USD/Pc.
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

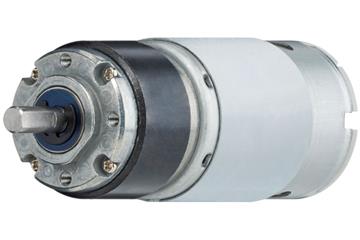

drylin® E DC motor with planetary gearbox, flange 36/42mm

  • Installation size: Flange dimension 42mm
  • Protection class: IP20
  • Torque: 0.1Nm to 1.8Nm
  • Operating voltage: 12VDC & 24VDC
  • Speed: up to 440rpm
  • Direct battery operation possible
  • Motor connection: low-profile connector
105,23 USD/Pc.
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

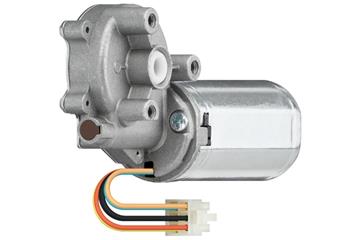

drylin® E DC motor with worm gear and spline

  • Installation size: Flange dimension 42mm
  • Protection class: IP20
  • Torque: 0.75Nm to 2.00Nm
  • Speed: up to 350rpm
  • Direct battery operation possible
  • Motor connection: stranded wires with Molex connector
107,69 USD/Pc.
8 items, thereof ready for shipping:
8 in 24 hours
To the product page

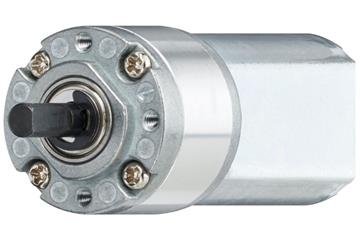

drylin® E DC motor with planetary gearbox, flange 22mm

  • Installation size: flange dimension 22mm
  • Protection class: IP30
  • Torque: 0.025Nm to 0.21Nm
  • Operating voltage: 12VDC & 24VDC
  • Speed: up to 463rpm
  • Direct battery operation possible
  • Motor connection: low-profile connector
72,55 USD/Pc.
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

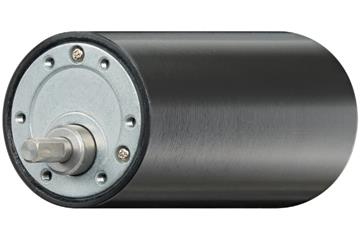

drylin® E DC motor with spur gear and protective housing

  • Installation size: Flange dimension 42mm
  • Protection class: IP41
  • Torque: 0.1Nm to 1.5N
  • Operating voltage: 12VDC & 24VDC
  • Speed: up to 440rpm
  • Direct battery operation possible
  • Motor connection: Metric M12 connector
152,78 USD/Pc.
4 items, thereof ready for shipping:
4 in 24 hours
To the product page

drylin® E DC motor with spur gear, flange 37mm

  • Installation size: flange dimension 37mm
  • Protection class: IP30
  • Torque: 0.1Nm to 1.8Nm
  • Operating voltage: 12VDC & 24VDC
  • Speed: up to 440rpm
  • Direct battery operation possible
  • Motor connection: low-profile connector
67,16 USD/Pc.
4 items, thereof ready for shipping:
4 in 24 hours
To the product page
