Self-aligning clip bearing

Number of products: 10

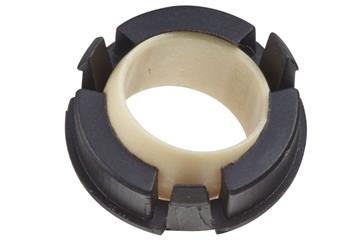

Clip bearing, ECLM, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J
  • Very easy installation by simply snapping into sheet metal
  • No additional axial fastening necessary
  • Extremely small installation space: space-saving, thin-walled design
5.43 USD/Pc.
6 items, thereof ready for shipping:
4 in 24 hours
2 in 2 weeks
To the product page

Clip bearing, heavy duty, ECLM-HD, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® W300
  • High axial and radial loads
  • Adjustment of axial and radial clearance by pretension
  • Very easy installation by simply snapping into sheet metal
  • No additional axial fastening necessary
  • For plate thickness 4.0–8.0 mm
7.78 USD/Pc.
5 items, thereof ready for shipping:
5 in 24 hours
To the product page

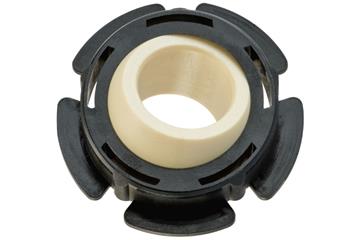

Clip bearing, maximum compensation of tolerances, EGFM-T, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® W300
  • Maintenance-free dry operation
  • Easy installation
  • Max. tolerance compensation ±0.2 mm
13.10 USD/Pc.
6 items, thereof ready for shipping:
6 in 24 hours
To the product page

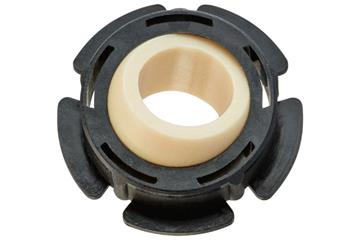

Clip bearing, maximum compensation of tolerances, EGFM-T J, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J
  • Maintenance-free dry operation
  • Easy installation
  • Max. tolerance compensation ±0.2 mm
8.50 USD/Pc.
6 items, thereof ready for shipping:
4 in 24 hours
To the product page

Clip bearing, maximum compensation of tolerances, EGFM-T J4V, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J4V
  • Maintenance-free dry operation
  • Easy installation
  • Max. tolerance compensation ±0.2 mm
Upon request
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

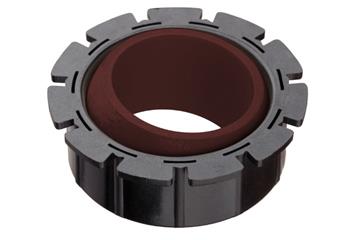

Clip bearing, maximum compensation of tolerances, EGFM-T R, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® R
  • Maintenance-free dry operation
  • Easy installation
  • Max. tolerance compensation ±0.2 mm
13.73 USD/Pc.
3 items, thereof ready for shipping:
3 in 24 hours
To the product page

Clip bearing, maximum compensation of tolerances, EGFM-T UW, igubal®

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® UW
  • Maintenance-free dry operation
  • Easy installation
  • Max. tolerance compensation ±0.2 mm
11.13 USD/Pc.
4 items, thereof ready for shipping:
3 in 24 hours
1 in 72 hours
To the product page

Clip bearing with galvanised steel ball studs, igubal®

  • Connection for rotating and pivoting movements
  • Easy and quick assembly
  • Absolutely corrosion-resistant
  • Lubrication- and maintenance-free
  • Very lightweight
  • Chemical resistance
  • Ball stud made from galvanised steel
5.92 USD/Pc.
1 items, thereof ready for shipping:
1 in 72 hours
To the product page

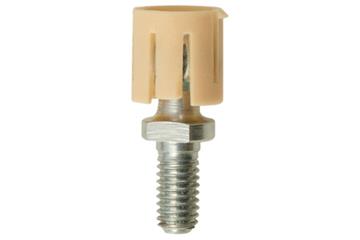

Clip bearing with stainless steel ball studs, igubal®

  • Connection for rotating and pivoting movements
  • Easy and quick assembly
  • Corrosion-resistant
  • Lubrication-free and maintenance-free
  • Very low weight
  • Chemical resistance
  • Ball studs made from galvanised stainless steel
Upon request
1 items, thereof ready for shipping:
1 in 24 hours
To the product page

Clip bearing ZCLM, igubal®

  • Connection for rotating and pivoting movements
  • Very easy to install
  • Absolutely corrosion-resistant
  • Lubrication-free and maintenance-free
  • Lightweight
  • Resistance to chemicals
Upon request
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
