Mounting brackets for TRC, TRCF, TRE, TRL & TRLF

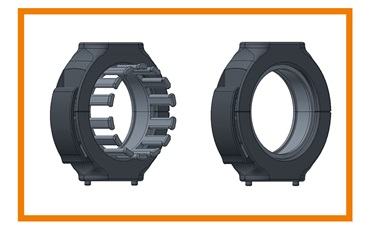

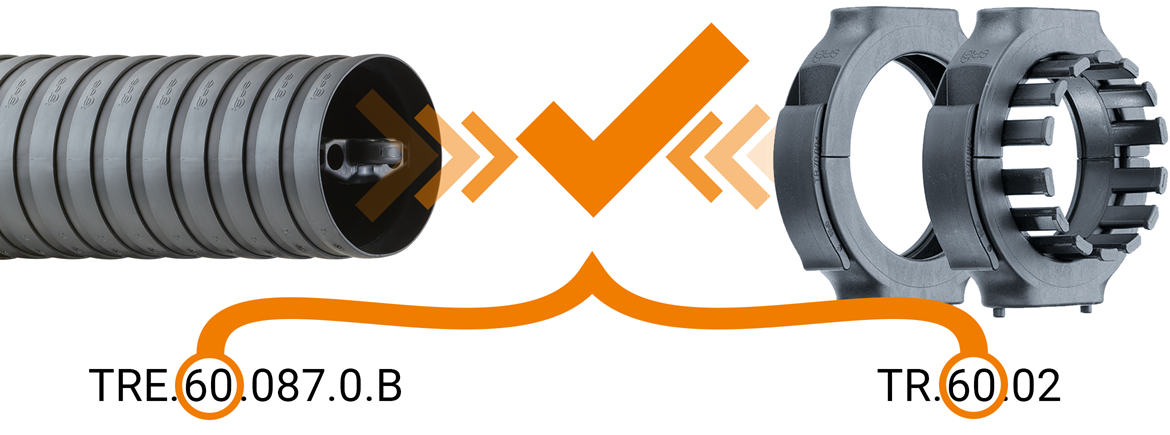

Standard mounting bracket

Quick and easy installation of the energy chain
Extremely short time to exchange a pre-filled triflex® R

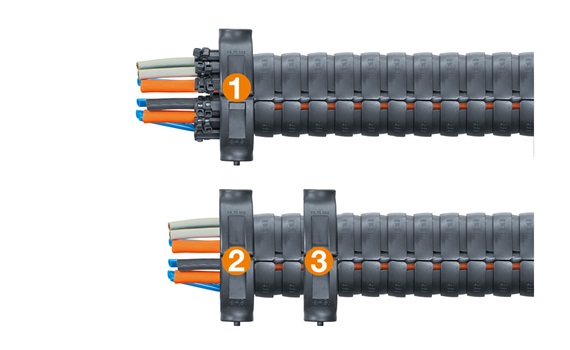

Mounting bracket available with strain relief teeth (1)
Mounting bracket without strain relief teeth (2)
Mounting bracket as intermediate bracket (3)
Quick mounting with captive snap lock
Mounting holes for common robot types
Final or intermediate mounting possible

(1) Mounting bracket with strain relief TR.XX.01
(2) Mounting bracket without strain relief TR.XX.02
(3) Mounting bracket as intermediate bracket TR.XX.02
Strain relief systems are possible on the fixed end and/or moving end!
Standard: through holes in ø F
Option: with threaded bushings, steel, M6/M8

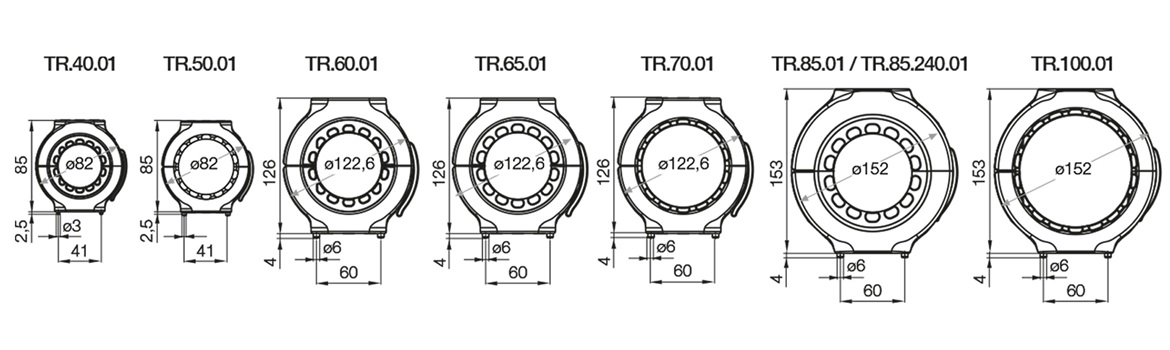

Standard mounting brackets with strain relief

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]	Dimension Ø F [mm]
TR.40.01	with strain relief	17,8	21	13,5	27	84,5	6,5	27,80 USD
TR.40.01.M6	with strain relief	17,8	21	13,5	27	84,5	6,5	27,80 USD
TR.50.01	with strain relief	21	21	13,5	27	84,5	6,5	33,49 USD
TR.50.01.M6	with strain relief	21	21	13,5	27	84,5	6,5	33,49 USD
TR.60.01	with strain relief	25	32	20	40	126	9	39,21 USD
TR.60.01.M8	with strain relief	25	32	20	40	126	9	39,21 USD
TR.65.01	with strain relief	25	32	20	40	126	9	39,39 USD
TR.65.01.M8	with strain relief	25	32	20	40	126	9	39,39 USD
TR.65.200.01	with strain relief	25	32	20	40	126	9	154,02 USD
TR.65.200.01.M8	with strain relief	25	32	20	40	126	9	154,02 USD
TR.70.01	with strain relief	25	32	20	40	126	9	39,64 USD
TR.70.01.M8	with strain relief	25	32	20	40	126	9	39,64 USD
TR.85.01	with strain relief	38	35	20	40	155	9	53,22 USD
TR.85.01.M8	with strain relief	38	35	20	40	155	9	53,22 USD
TR.85.240.01	with strain relief	38	35	20	40	155	9	61,24 USD
TR.85.240.01.M8	with strain relief	38	35	20	40	155	9	61,24 USD
TR.100.01	with strain relief	38	35	20	40	153	9	53,75 USD
TR.100.01.M8	with strain relief	38	35	20	40	153	9	53,75 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Triflex R standard mounting brackets with strain relief

Standard mounting brackets without strain relief

Part No.	Version	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]	Dimension Ø F [mm]
TR.40.02	without strain relief	21	13,5	27	84,5	6,5	27,75 USD
TR.40.02.M6	without strain relief	21	13,5	27	84,5	6,5	27,75 USD
TR.50.02	without strain relief	21	13,5	27	85	6,5	33,09 USD
TR.50.02.M6	without strain relief	21	13,5	27	85	6,5	33,09 USD
TR.60.02	without strain relief	32	20	40	126	9	38,46 USD
TR.60.02.M8	without strain relief	32	20	40	126	9	38,46 USD
TR.65.02	without strain relief	32	20	40	126	9	38,71 USD
TR.65.02.M8	without strain relief	32	20	40	126	9	38,71 USD
TR.65.200.02	without strain relief	32	20	40	126	9	81,93 USD
TR.65.200.02.M8	without strain relief	32	20	40	126	9	81,93 USD
TR.70.02	without strain relief	32	20	40	126	9	38,83 USD
TR.70.02.M8	without strain relief	32	20	40	126	9	38,83 USD
TR.85.02	without strain relief	35	20	40	155	9	49,64 USD
TR.85.02.M8	without strain relief	35	20	40	155	9	49,64 USD
TR.85.240.02	without strain relief	35	20	40	155	9	57,10 USD
TR.85.240.02.M8	without strain relief	35	20	40	155	9	57,10 USD
TR.100.02	without strain relief	35	20	40	155	9	50,15 USD
TR.100.02.M8	without strain relief	35	20	40	155	9	50,15 USD
TR.125.02	without strain relief	40	0	64	190	9	164,93 USD
TR.125.02.M8	without strain relief	40	0	64	190	9	164,93 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

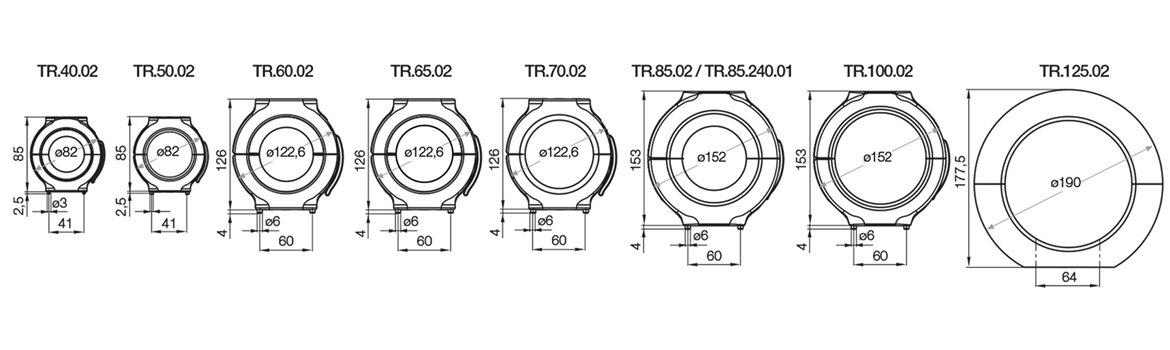

Standard mounting brackets without strain relief

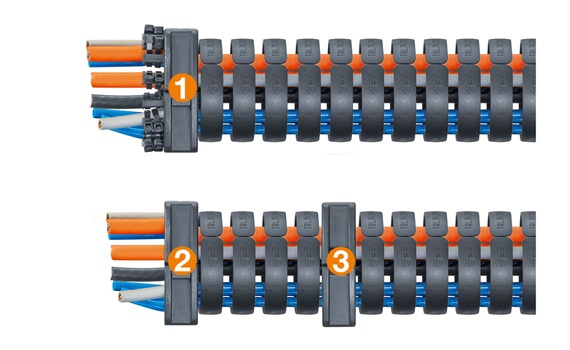

Light mounting bracket

Standard for TRL version, but also compatible with all triflex® R variants (TRC/TRE)
Mounting bracket with strain relief teeth (1)
Mounting bracket without strain relief teeth (2)
Mounting bracket as intermediate bracket (3)

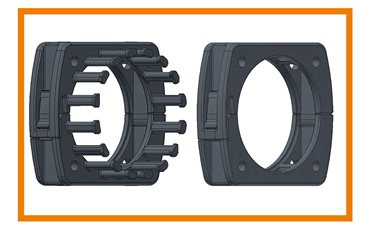

Cost-effective and lightweight
For simple multi-axis movements and loads
Consisting of two halves and easy to install

(1) Mounting bracket with strain relief TL.XX.01.Z2
(2) Mounting bracket without strain relief TL.XX.01.Z0
(3) Mounting bracket as intermediate bracket TL.XX.01.Z0

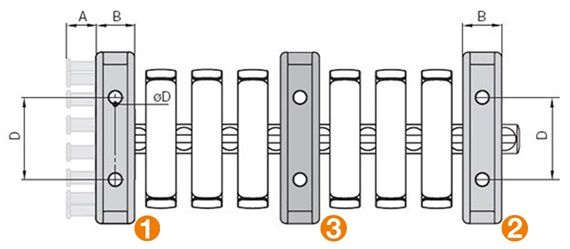

Light mounting bracket with short strain relief teeth

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. D [mm]	Dim. ØD [mm]
TL.30.01.Z1	Short strain relief	12,5	13	24	4,5	6,17 USD
TL.40.01.Z1	Short strain relief	12,5	14	36	5,8	5,29 USD
TL.60.01.Z1	Short strain relief	17	20	48	5,8	8,69 USD
TL.65.01.Z1	Short strain relief	13,5	27	64	6,5	11,82 USD
TL.70.01.Z1	Short strain relief	17,5	27	64	6,5	14,97 USD
TL.85.01.Z1	Short strain relief	26,5	30	64	6,5	30,42 USD
TL.100.01.Z1	Short strain relief	22,5	30	64	6,5	21,47 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Light mounting bracket with long strain relief teeth

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. D [mm]	Dim. ØD [mm]
TL.40.01.Z2	Long strain relief	20	14	36	5,8	5,34 USD
TL.60.01.Z2	Long strain relief	27	20	48	5,8	8,85 USD
TL.70.01.Z2	Long strain relief	27,5	27	64	6,5	15,15 USD
TL.100.01.Z2	Long strain relief	42,5	30	64	6,5	21,90 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

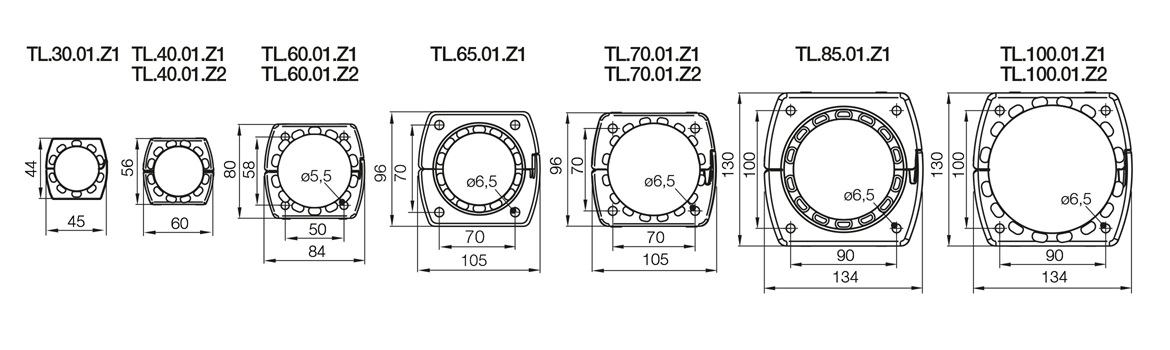

triflex R light mounting bracket with strain relief

Lightweight mounting bracket without strain relief

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. D [mm]	Dim. ØD [mm]
TL.30.01.Z0	without strain relief	13	24	4,5	9,00 USD
TL.40.01.Z0	without strain relief	14	36	5,8	5,22 USD
TL.60.01.Z0	without strain relief	20	48	5,8	8,49 USD
TL.65.01.Z0	without strain relief	27	64	6,5	11,54 USD
TL.70.01.Z0	without strain relief	27	64	6,5	14,57 USD
TL.85.01.Z0	without strain relief	30	64	6,5	29,84 USD
TL.100.01.Z0	without strain relief	30	64	6,5	20,76 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

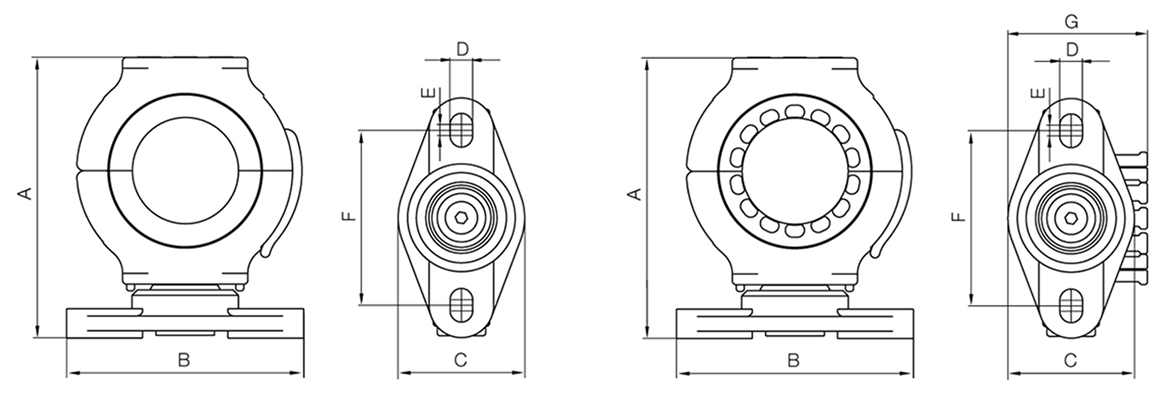

Swivel bearing mounting brackets

To ensure a better, gentler movement of the cables being guided, compensation must be provided for extreme torsion and reverse bending, especially for sensitive cables with a large bend radius (e.g fibre optic cables)

Versions with strain relief teeth (1)
Version without strain relief teeth (2)

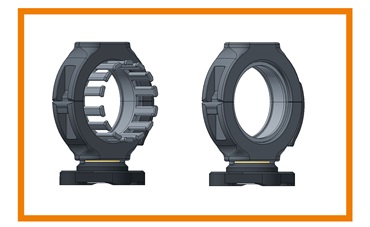

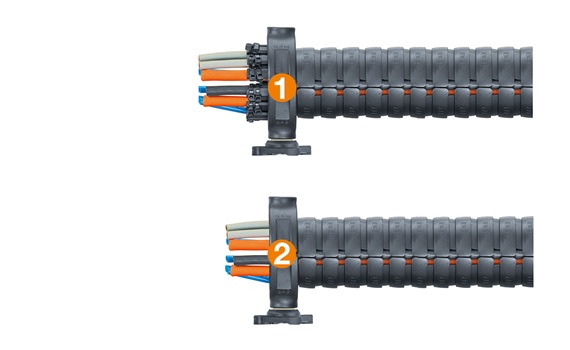

Pivoted mounting with maintenance-free igubal® spherical bearings
Minimising the critical reverse bend
Movements are gentler

Standard mounting brackets with swivel bearing and strain relief

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]	Dim. F [mm]	Dim. G [mm]
TR.40.03	with strain relief	105	89	47	8,4	4,1	65	51,8	58,51 USD
TR.50.03	with strain relief	105	89	47	8,4	4,1	65	55	64,21 USD
TR.60.03	with strain relief	152	118	65	10,5	5,5	87,5	73,5	77,19 USD
TR.65.03	with strain relief	152	118	65	10,5	5,5	87,5	73,5	77,39 USD
TR.65.200.03	with strain relief	152	118	65	10,5	5,5	87,5	73,5	197,52 USD
TR.70.03	with strain relief	152	118	65	10,5	5,5	87,5	73,5	77,62 USD
TR.85.03	with strain relief	179	118	65	10,5	5,5	87,5	88	87,62 USD
TR.85.240.03	with strain relief	179	118	65	10,5	5,5	87,5	88	95,66 USD
TR.100.03	with strain relief	179	118	65	10,5	5,5	87,5	88	91,75 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Standard mounting brackets with swivel bearing without strain relief

Part No.	Version	Dim. A [mm]	Dim. B [mm]	Dim. C [mm]	Dim. D [mm]	Dim. E [mm]	Dim. F [mm]	Dim. G [mm]
TR.40.04	without strain relief	105	89	47	8,4	4,1	65	51,8	58,44 USD
TR.50.04	without strain relief	105	89	47	8,4	4,1	65	51,8	63,81 USD
TR.60.04	without strain relief	152	118	65	10,5	5,5	87,5	73,5	76,48 USD
TR.65.04	without strain relief	152	118	65	10,5	5,5	87,5	73,5	76,71 USD
TR.65.200.04	without strain relief	152	118	65	10,5	5,5	87,5		139,00 USD
TR.70.04	without strain relief	152	118	65	10,5	5,5	87,5	73,5	76,86 USD
TR.85.04	without strain relief	179	118	65	10,5	5,5	87,5	0	87,65 USD
TR.85.240.04	without strain relief	179	118	65	10,5	5,5	87,5	0	95,08 USD
TR.100.04	without strain relief	179	118	65	10,5	5,5	87,5	88	88,15 USD

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

ready for shipping in 24 hours

Country/Region

By selecting your country you will be shown local offers and information.

Mounting brackets for TRC, TRCF, TRE, TRL & TRLF

Standard

Light

Swivel bearings

Standard mounting bracket

Standard mounting brackets with strain relief

More about selected part:

Standard mounting brackets without strain relief

More about selected part:

Light mounting bracket

Light mounting bracket with short strain relief teeth

More about selected part:

Light mounting bracket with long strain relief teeth

More about selected part:

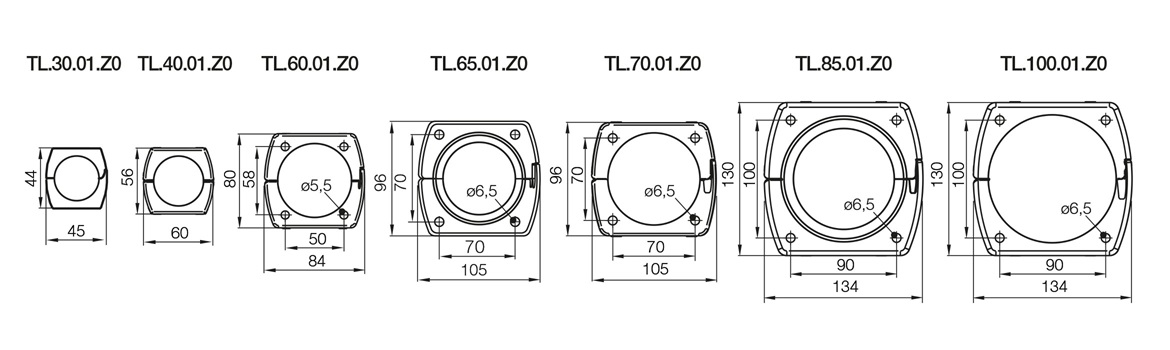

Lightweight mounting bracket without strain relief

More about selected part:

Swivel bearing mounting brackets

Standard mounting brackets with swivel bearing and strain relief

More about selected part:

Standard mounting brackets with swivel bearing without strain relief

More about selected part:
