drygear modular gearbox system

The robolink® modular robotic system allows you to automate manual work steps quickly and easily. Articulated arms in various lengths and sizes are available. The number of lubrication-free joints used ranges from two to six, and the robot can be equipped with various tools (e.g., grippers, suction cup, camera, etc.) as desired. robolink® robot components are characterised by their modularity. As a modular system, a robot arm can be configured as desired and therefore economically, and moreover it is also possible to obtain ready-to-use complete systems.


List
Tile

Number of products: 41

New

Apiro® Robotic kit
Apiro® Robotic kit
The Apiro® (Greek for "infinite") robot gearbox construction kit is now available as a starter kit. Build your own robot, including instructions.

The following assemblies can be built:
1. Apiro® room gantry
2. Apiro® area gantry
3. Apiro® mini articulated arm robot
4. Apiro® pusher
5. Apiro® 2-axis picker
6. Apiro® 3-axis picker
7. Apiro® 360° picker
8. Apiro® SCARA
2,366.64 USD/Pc.
To the product page

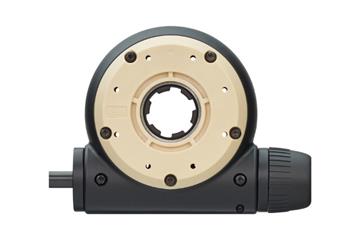

drygear® Apiro | Gearbox with hollow shaft
drygear® Apiro | Gearbox with hollow shaft
The standard version among Apiro gearboxes: the worm gear with hollow shaft enables flexible drive connections.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
166.51 USD/Pc.
To the product page
New

Apiro® bevel gear
Apiro® bevel gear
Bevel gear units are used wherever motion and forces have to be transmitted at right angles. With a 1:1 transmission ratio, the transmitted torques can be transferred almost without loss.
  • 1:1 transmission ratio
  • Splash-proof
  • Ini-kit available for all variants
171.62 USD/Pc.
To the product page

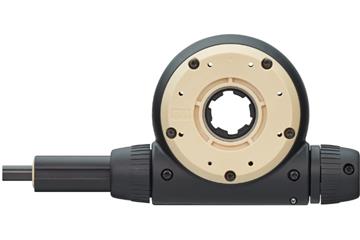

drygear® Apiro | Gearbox with multi-functional profile
drygear® Apiro | Gearbox with multi-functional profile
The gearbox and the direct multi-function profile can be used, among other things, to implement series connections of gearboxes.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
170.21 USD/Pc.
To the product page
New

Apiro® Auslegerachse mit Doppelachse
Apiro® Auslegerachse mit Doppelachse
Die Auslegerachse vom Getriebebaukasten Apiro® ist nun mit einer doppelten Auslegerachse erhältlich. Geeignet für motorischen oder manuellen Antrieb. Die Module sind seriell oder parallel nutzbar bei Hüben von 60 - 1.050 mm.
165.23 USD/Pc.
To the product page

drygear® Apiro | Gearbox with rotary disc
drygear® Apiro | Gearbox with rotary disc
This gearbox from the Apiro modular gearbox system is particularly suitable for slewing ring applications, as it can, among other things, be used as an external rotary axis.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
202.07 USD/Pc.
To the product page

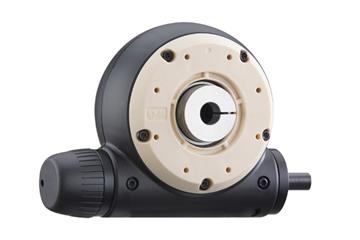

drygear® Apiro | Gearbox with coupling
drygear® Apiro | Gearbox with coupling
The version with couplings on the output allows the attachment of various shafts with a maximum diameter of 12 millimetres.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Coupling diameter 8mm
Optionally available
  • more transmissions
  • various fasteners
193.17 USD/Pc.
To the product page

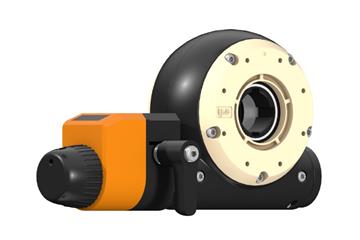

drygear® Apiro | Gearbox with manual clamp and position indicator
drygear® Apiro | Gearbox with manual clamp and position indicator
The complete Apiro gear unit including manual clamp and position indicator is ideal for manual adjustments and fixings.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Accessories can be pivoted in four positions:0°, 90°, 180°, 270°
Optionally available
  • more transmissions
  • various fasteners
299.82 USD/Pc.
To the product page

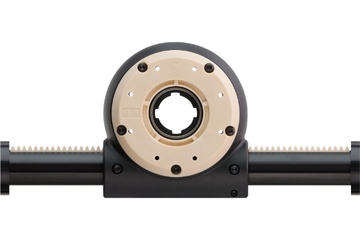

drygear® Apiro cantilever axis
drygear® Apiro cantilever axis
The linear gearbox enables different strokes in the application and contains rack and pinion elements. It can be configured in different lengths, for example, for pusher applications.
  • Motor drive or manual drive
  • Modules can be connected in series or in parallel
  • INI kit available for all options
  • Application temperature: +5°C to +50°C
107.75 USD/Pc.
To the product page

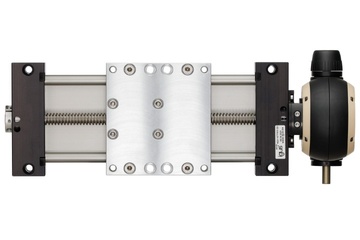

drygear® Apiro connection to drylin SLW, SHT
drygear® Apiro connection to drylin SLW, SHT
Direct connection at the output to drylin SLW, SHT unit
Available options are:
  • SLW-1660
  • SHT-12 / SLW-10xx
  • SHT-20
  • SHT-30/SLW-1660
  • SHT-BB-20 / SLW-BB-2080
  • SHT-BB-30 / SLW-BB-25120
For the Apiro-drylin connection, the matching Apiro gearbox is also required!
87.33 USD/Pc.
To the product page

drygear® Apiro | Connection to dryspin® lead screws
drygear® Apiro | Connection to dryspin® lead screws
A simple and direct connection of the Apiro gearboxes to the dryspin lead screws

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Available options: DS10x25, DS12x5 and TR16x2
Optionally available
  • more transmissions
  • various fasteners
196.44 USD/Pc.
To the product page

drygear® Apiro | Gearbox with output coupling
drygear® Apiro | Gearbox with output coupling
The standard version among Apiro gearboxes: the worm gear with drive coupling enables a direct connection. The gearbox with an output shaft enables a direct connection to the output and is ideally suited for connection to drylin drive technology.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output shaft diameter: 8mm
Optionally available
  • more transmissions
  • various fasteners
206.84 USD/Pc.
To the product page

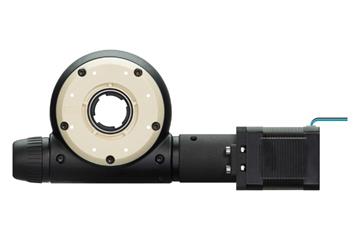

drygear® Apiro motor kit Nema 17 with strand
drygear® Apiro motor kit Nema 17 with strand
  • Installation size: NEMA17/flange installation size 42mm
  • Holding torque: 0.5Nm
  • Nominal current: 1.80A
  • Motor connection:  stranded wire
  • Price without gearbox
166.91 USD/Pc.
To the product page

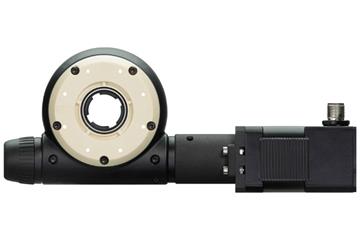

drygear® Apiro motor kit Nema 17 with connector and encoder
drygear® Apiro motor kit Nema 17 with connector and encoder
  • Installation size: NEMA17/flange installation size 42mm
  • Holding torque: 0.50Nm
  • Nominal current: 1.80A
  • Motor connection: metric connector
  • Price without gearbox
429.35 USD/Pc.
To the product page

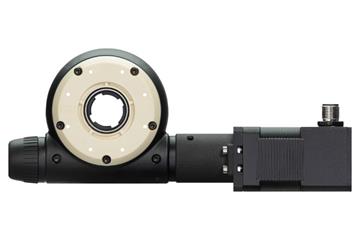

drygear® Apiro motor kit Nema 17 with connector
drygear® Apiro motor kit Nema 17 with connector
  • Installation size: NEMA17/flange installation size 42mm
  • Holding torque: 0.50Nm
  • Nominal current: 1.80A
  • Motor connection: metric connector
  • Price without gearbox
272.93 USD/Pc.
To the product page
