Control cables

The chainflex® control cables are available for the most varied mechanical requirements in various approvals and conformities. Depending on the type of control cable, they are torsion-resistant, suitable for narrow radii or very low temperatures, UV-resistant, flame-retardant and halogen-free. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.

  • Bending radii up to 4xd
  • Shielded / Unshielded
  • Jacket materials: PVC, iguPUR, PUR or TPE

4 years guarantee

4 years guarantee

You can expect that from us.
Categories
Cables for motion
Ready-to-connect cables
Unharnessed cables
Control cables
Data cables
Motor cables
Bus cables
Measuring system cables
Servo cables
Coaxial cables
Fibre Optic Cables (FOC)
Special cables
Robot cables
Cleanroom cables
Pneumatic hoses
Filter
Core Requirements
Show details
Cable structure
Material
Electrical information
Requirements
List
Tile

Number of products: 18

chainflex® control cable CF130.UL
chainflex® control cable CF130.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.2
0.39 USD/ft
55 items, thereof ready for shipping:
54 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF140.UL
chainflex® control cable CF140.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.1
1.23 USD/ft
32 items, thereof ready for shipping:
31 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame,<br />FT4 TC-ER UL 1277, WTTC UL 2277, MTW UL W63 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF5
chainflex® control cable CF5
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.2
0.66 USD/ft
43 items, thereof ready for shipping:
43 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF890
chainflex® control cable CF890
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1
0.45 USD/ft
38 items, thereof ready for shipping:
38 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF6
chainflex® control cable CF6
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.1
1.90 USD/ft
34 items, thereof ready for shipping:
33 in 24 hours
1 in 48 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1.

chainflex® control cable CF891
chainflex® control cable CF891
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1
0.76 USD/ft
34 items, thereof ready for shipping:
33 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF77.UL.D
chainflex® control cable CF77.UL.D
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 5.1.3.3
0.98 USD/ft
54 items, thereof ready for shipping:
52 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 50267-2-1 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

chainflex® control cable CF78.UL
chainflex® control cable CF78.UL
  • Requirements: For heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • CFRIP®
  • chainflex® class: 5.5.3.1
2.27 USD/ft
36 items, thereof ready for shipping:
36 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 50267-2-1 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1

chainflex® control cable CF2
chainflex® control cable CF2
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 6.5.3.1
2.90 USD/ft
12 items, thereof ready for shipping:
11 in 24 hours
1 in 48 hours
To the product page
UV resistance High Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1

chainflex® control cable CF9.UL
chainflex® control cable CF9.UL
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.2
1.35 USD/ft
42 items, thereof ready for shipping:
39 in 24 hours
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1

chainflex® control cable CF10
chainflex® control cable CF10
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 7.6.4.1
2.38 USD/ft
37 items, thereof ready for shipping:
37 in 24 hours
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified to no. TC RU C-DE. ME77.B.01254 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

chainflex® control cable CF10.UL
chainflex® control cable CF10.UL
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.1
3.21 USD/ft
33 items, thereof ready for shipping:
30 in 24 hours
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1

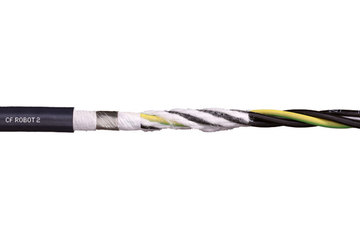

chainflex® control cable CFROBOT2
chainflex® control cable CFROBOT2
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 6.1.3.3
5.17 USD/ft
5 items, thereof ready for shipping:
5 in 24 hours
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1

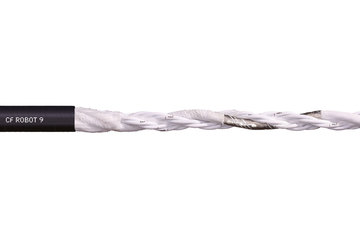

chainflex® hybrid control cable CFROBOT9
chainflex® hybrid control cable CFROBOT9
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 6.1.3.3
6.96 USD/ft
8 items, thereof ready for shipping:
4 in 24 hours
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1

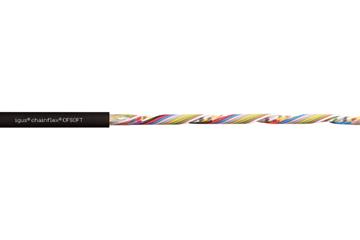

chainflex® control cable CFSOFT1
chainflex® control cable CFSOFT1
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • chainflex® class: 7.1.2.1
1.80 USD/ft
4 items, thereof ready for shipping:
4 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1
