Data cables

Data cables from chainflex® are available as PVC, PUR and TPE data cables, as twisted pair, or as data cables braided in layers. The highly flexible cables are suitable for high stress and are flame-retardant as well as oil-resistant. They are used in high speeds and accelerations. All chainflex® data cables are designed as shielded cables. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.

  • Bending radii up to 6,8xd
  • Jacket materials: PVC, PUR or TPE

4 years guarantee

4 years guarantee

You can expect that from us.
Categories
Cables for motion
Ready-to-connect cables
Unharnessed cables
Control cables
Data cables
Motor cables
Bus cables
Measuring system cables
Servo cables
Coaxial cables
Fibre Optic Cables (FOC)
Special cables
Robot cables
Cleanroom cables
Pneumatic hoses
Filter
Core Requirements
Show details
Cable structure
Material
Requirements
List
Tile

Number of products: 11

chainflex® CF240 data cable
chainflex® CF240 data cable
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • Silicone-free
  • chainflex® class: 4.4.2.1
1.23 USD/ft
24 items, thereof ready for shipping:
24 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 UL/CSA AWM Style 11008 and 2464, 300 V, 80 °C

chainflex® CF240.PUR data cable
chainflex® CF240.PUR data cable
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 4.4.3.1
1.42 USD/ft
20 items, thereof ready for shipping:
20 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10493 and 20233, 300 V, 80 °C

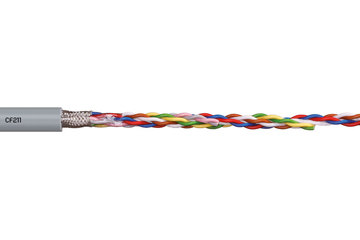

chainflex® CF211 data cable
chainflex® CF211 data cable
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • Silicone-free
  • chainflex® class: 5.5.2.1
1.58 USD/ft
20 items, thereof ready for shipping:
20 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10493 and 2464, 300 V, 80 °C

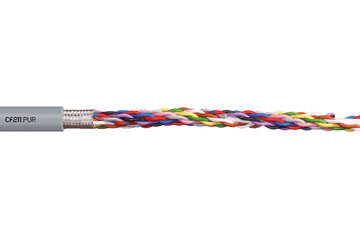

chainflex® CF211.PUR data cable
chainflex® CF211.PUR data cable
  • Requirements: For heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 5.5.3.1
1.64 USD/ft
20 items, thereof ready for shipping:
20 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified to DNV type examination – certificate no.: 13 656-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01559 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10493 and 2464, 300 V, 80 °C

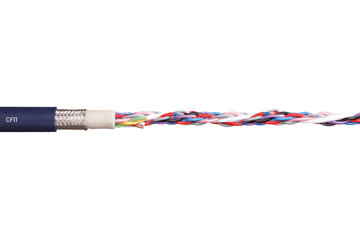

chainflex® CF11 data cable
chainflex® CF11 data cable
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.6.4.1
2.91 USD/ft
18 items, thereof ready for shipping:
17 in 24 hours
1 in 48 hours
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 50267-2-1 EAC Certified to no. TC RU C-DE. ME77.B.01254 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

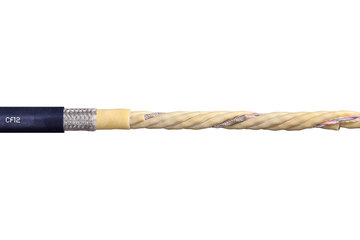

chainflex® CF12 data cable
chainflex® CF12 data cable
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.6.4.1
8.76 USD/ft
11 items, thereof ready for shipping:
8 in 24 hours
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified to no. TC RU C-DE. ME77.B.01254 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

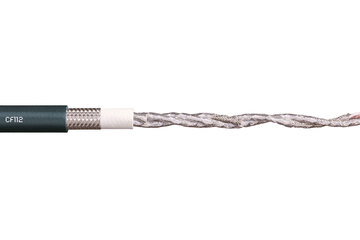

chainflex® data cable CF112
chainflex® data cable CF112
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 6.5.3.1
4.23 USD/ft
7 items, thereof ready for shipping:
7 in 24 hours
To the product page
UV resistance High Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified to DNV type examination – certificate no.: 13 656-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10493 and 20233, 300 V, 80 °C

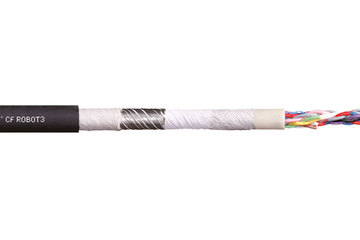

chainflex® data cable CFROBOT3
chainflex® data cable CFROBOT3
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • chainflex® class: 6.1.3.3
7.27 USD/ft
5 items, thereof ready for shipping:
5 in 24 hours
To the product page
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10497 and 20911, 300 V, 80 °C

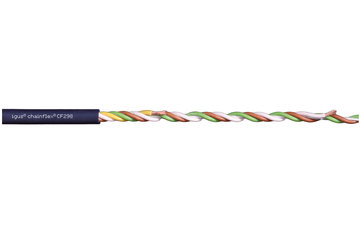

chainflex® CF298 data cable
chainflex® CF298 data cable
  • Requirements: For heaviest duty applications and especially small radii up to 4 x d
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Bio-oil-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 7.5.4.2
4.25 USD/ft
10 items, thereof ready for shipping:
9 in 24 hours
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

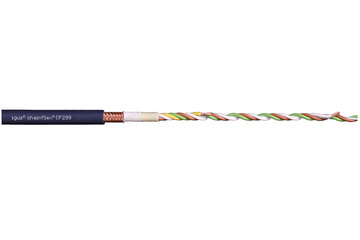

chainflex® CF299 data cable
chainflex® CF299 data cable
  • Requirements: For heaviest duty applications and especially small radii up to 4 x d
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Bio-oil-resistant
  • Halogen-free
  • Silicone-free
  • PVC-free
  • UV-resistant
  • chainflex® class: 7.5.4.1
5.66 USD/ft
5 items, thereof ready for shipping:
2 in 24 hours
1 in 48 hours
To the product page
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

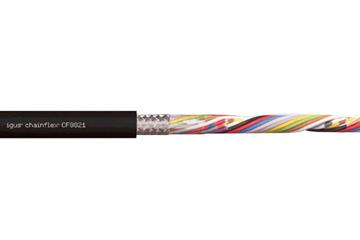

chainflex® data cable CF8821
chainflex® data cable CF8821
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: No oil resistance
  • Flame retardant
  • Silicone-free
  • chainflex® class: 3.1.1.1
0.69 USD/ft
4 items, thereof ready for shipping:
3 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10493 and 2464, 300 V, 80 °C
