Servo cables

The chainflex® servo cables for energy chains are available with or without an inner jacket. Depending on the type, they are flame-retardant, coolant-resistant, oil-resistant and flexible at low temperatures, whereby twistable cables are also possible. The servo cables are available for all well-known drive manufacturers. Tested in the igus® lab with  millions of cycles in e-chains®, they provide a guaranteed safety against failure.

  • Bending radii up to 7,5xd
  • Total shield with optimised braiding angle
  • Jacket materials: PVC, iguPUR, PUR or TPE

4 years guarantee

4 years guarantee

You can expect that from us.
Categories
Cables for motion
Ready-to-connect cables
Unharnessed cables
Control cables
Data cables
Motor cables
Bus cables
Measuring system cables
Servo cables
Coaxial cables
Fibre Optic Cables (FOC)
Special cables
Robot cables
Cleanroom cables
Pneumatic hoses
Filter
Core Requirements
Show details
Cable structure
Material
Electrical information
Requirements
Drive technology system
List
Tile

Number of products: 9

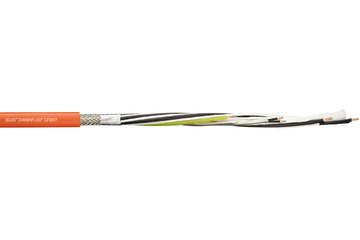

chainflex® servo cable CF887
chainflex® servo cable CF887
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1
2.78 USD/ft
7 items, thereof ready for shipping:
7 in 24 hours
To the product page
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

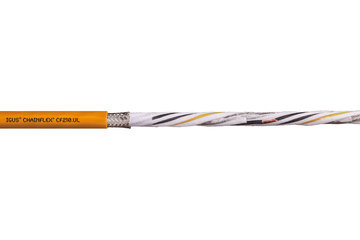

chainflex® servo cable CF210.UL
chainflex® servo cable CF210.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
2.85 USD/ft
11 items, thereof ready for shipping:
11 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.02324 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

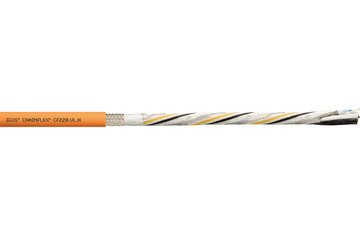

chainflex® hybrid servo cable CF220.UL.H
chainflex® hybrid servo cable CF220.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
5.63 USD/ft
9 items, thereof ready for shipping:
9 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2.  Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

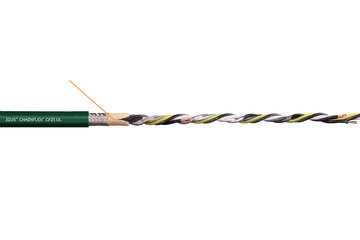

chainflex® servo cable CF21.UL
chainflex® servo cable CF21.UL
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • CFRIP®
  • chainflex® class: 5.5.2.1
5.58 USD/ft
16 items, thereof ready for shipping:
14 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

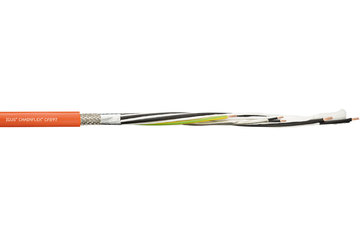

chainflex® servo cable CF897
chainflex® servo cable CF897
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.3.1
4.10 USD/ft
4 items, thereof ready for shipping:
4 in 24 hours
To the product page
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 21223, 1.000 V, 80 °C

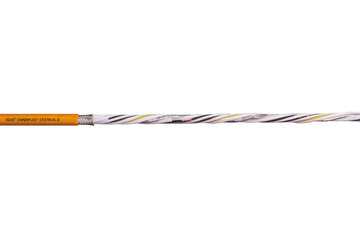

chainflex® servo cable CF270.UL.D
chainflex® servo cable CF270.UL.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
3.01 USD/ft
35 items, thereof ready for shipping:
32 in 24 hours
1 in 48 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

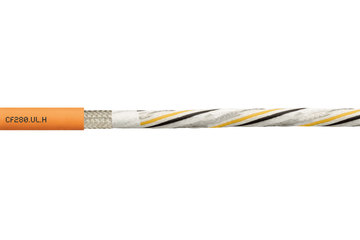

chainflex® hybrid servo cable CF280.UL.H
chainflex® hybrid servo cable CF280.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
5.94 USD/ft
26 items, thereof ready for shipping:
25 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

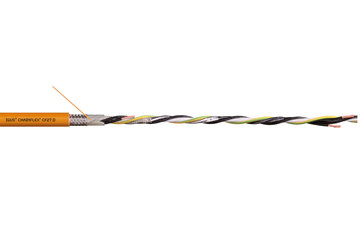

chainflex® servo cable CF27.D
chainflex® servo cable CF27.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1
4.14 USD/ft
25 items, thereof ready for shipping:
25 in 24 hours
To the product page
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10492 and 20234, 1.000 V, 80 °C

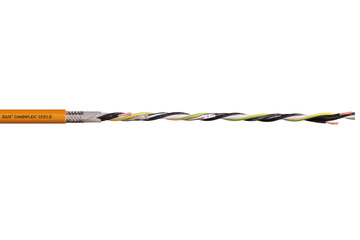

chainflex® servo cable CF29.D
chainflex® servo cable CF29.D
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Overall shield
  • PVC-free
  • chainflex® class: 7.6.4.1
8.98 USD/ft
3 items, thereof ready for shipping:
3 in 24 hours
To the product page
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization
