iglidur® L500 – material data

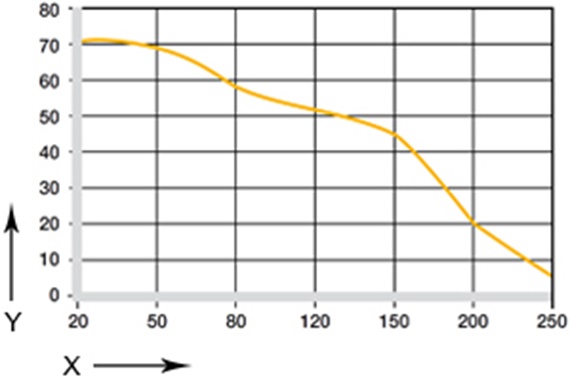

Diagram 02: Recommended maximum surface pressure as a function of temperature (60 MPa at +20 °C)

X = Temperature [°C]
Y = Load [MPa]

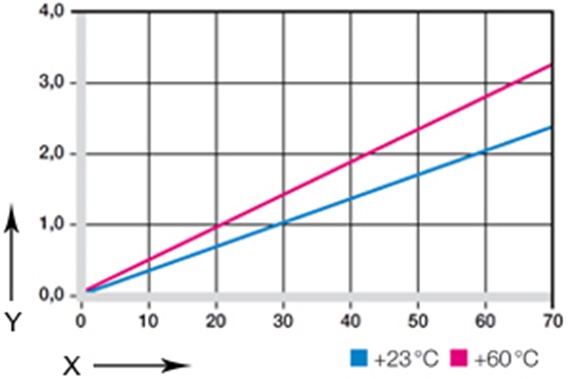

Diagram 03: Deformation under pressure load and temperatures

X = Load [MPa]
Y = Deformation [%]

Mechanical properties

With increasing temperatures, the compressive strength of iglidur® L500 plain bearings decreases. The diagram 02 shows this inverse relationship. The recommended maximum surface pressure is a mechanical material parameter. No con­clusions regarding the tribological properties can be drawn from this.

Diagram 03 shows the elastic deformation of iglidur® L500 at radial load. At the recommended maximum surface pressure of 70 MPa the deformation is less than 2.5 % at room temperature. Plastic deformation can be negligible up to this value. It is however also dependent on the duty cycle of the load.

Maximum running speed

m/s	Rotating	Oscillating	Linear
Continuous	4,0	1,5	5,0
Short-term	5,0	3,0	8,0

Table 03: Maximum surface speeds

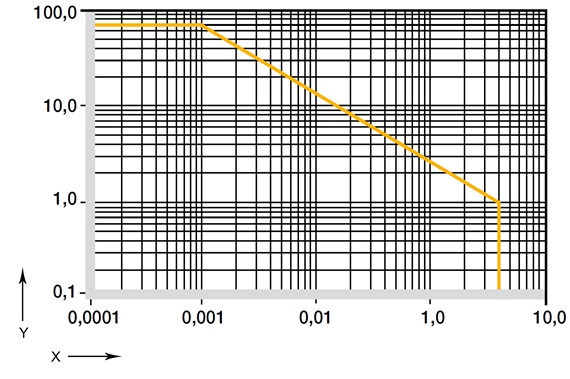

Permissible surface speeds

iglidur® L500 has been developed especially for high surface speeds with low loads. Due to the high temperature-resistance of iglidur® L500, the physical limit created from heating of the bearing has been increased significantly. In addition, the extremely low wear allows the high acceleration speeds to be reached and maintained. The maximum speeds are shown in table 03.

Temperatures

The iglidur® L500 bearings can be used in temperatures up to +315° C for the short-term. Note that mechanical securing of the bearing is recommended from temperatures of +130° C. Higher temperatures can also cause the bearing to lose its press-fit seating and move in the bore.

iglidur® W360	Dry	Greases	Oil	Water
C. o. f. µ	0,08 - 0,15	0,09	0,04	0,04

Table 04: Coefficients of friction against steel (Ra = 1 μm, 50 HRC)

Friction and wear

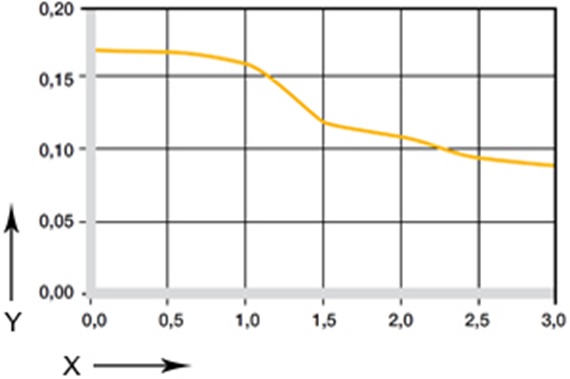

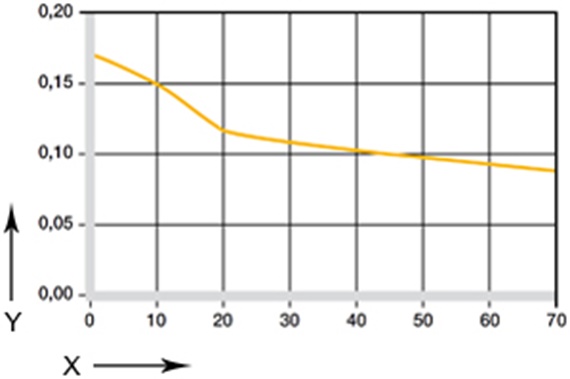

The excellent coefficient of friction level of iglidur® L500 in dry operation once again decreases considerably with speed. Diagram 04 shows this with respect to a steel shaft. As the load increases, the coefficient of friction decreases, especially in the range up to 20 MPa (Diagram 05).

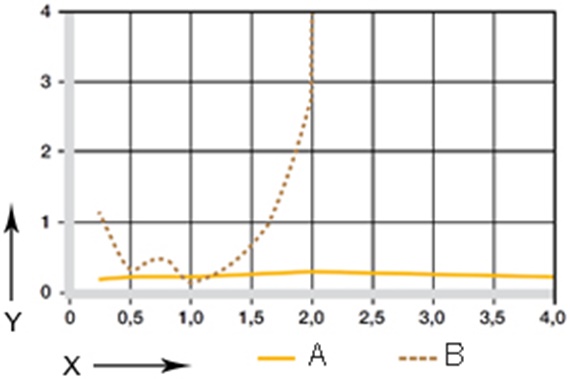

Diagram 06: Coefficients of friction as function of the shaft surface (Cf53 shaft)

X = Shaft roughness Ra [μm]
Y = Coefficient of friction μ

Shaft materials

Diagram 06 shows the result of a comparison test between iglidur® L500 and a sintered bearing. The wear of the sintered bearing increases exponentially after 1.5 m/s, while the iglidur® L500 bearing retains a nearly constant wear rate up to and over 4 m/s.

Medium	Resistance
Alcohol	+
Hydrocarbons	+
Greases, oils without additives	+
Fuels	+
Diluted acids	+
Strong acids	+
Diluted alkalines	+
Strong alkalines	+

+ resistant 0 limited resistance – not resistant

All data given at room temperature [+20 °C]
Table 02: Chemical resistance of iglidur® L500

Additional properties

Radiation resistance iglidur® L500 bearings are resistant to radiation up to a radiation intensity of 3 · 102 Gy. Higher radiation weakens the material and may result in a significant decrease in mechanical properties.


UV resistance The material properties of iglidur® L500 bearings do not change under UV rays or other weathering influences.


VacuumIn vacuum, moisture is released as a vapour. Due to its low absorption of water, however, use in a vacuum is possible.

Diameter d1 [mm]	Shaft h9 [mm]	iglidur® L500 F10 [mm]	Housing H7 [mm]
to 3	0 - 0,025	+0,006 +0,046	0 +0,010
> 3 bis 6	0 - 0,030	+0,010 +0,058	0 +0,012
> 6 bis 10	0 - 0,036	+0,013 +0,071	0 +0,015
> 10 bis 18	0 - 0,043	+0,016 +0,086	0 +0,018
> 18 bis 30	0 - 0,052	+0,020 +0,104	0 +0,021

Table 05: Important tolerances according to ISO 3547-1 after being pressed in

Installation tolerances

iglidur® L500 plain bearings are standard bearings for shafts with h-tolerance (recommended minimum h9). The bearings are designed for pressfit into a housing machined to a H7 tolerance. After being assembled into a nominal size housing, the inner diameter automatically adjusts to the F10 tolerances. For particular dimensions the tolerance differs depending on the wall thickness (please see product range table).
